Installing gutters on a pergola is the process of mounting a channel-and-downspout drainage system to a pergola’s beams or fascia to redirect rainwater away from the structure, foundation, and living space below.
This guide covers gutter type selection, structural preparation and slope planning, step-by-step installation, material-specific techniques, common mistakes and ongoing maintenance, and professionally engineered drainage alternatives.
Pergola gutters come in four main profiles: K-style, half-round, box, and seamless. Each varies in water capacity, clog resistance, and aesthetic fit, so matching the profile to your pergola’s design and local rainfall intensity is the starting point for every successful installation.
Before mounting any hardware, the pergola itself needs evaluation. Structural integrity checks, a drainage slope of 1/4 inch per 10 feet of gutter run, and strategic downspout positioning prevent the most common causes of system failure.
The installation sequence moves from attaching fascia boards (if none exist) through bracket mounting, section cutting, joint sealing, and downspout connection. Hanger spacing, sealant coverage at every joint, and proper outflow routing each play a direct role in long-term performance.
Wood, aluminum, and vinyl pergolas each require different fasteners, pilot-hole techniques, and thermal expansion allowances. Mismatched materials can lead to buckled gutters, pulled fasteners, or cracked mounting points within a single season of temperature cycling.
Incorrect slope, undersized profiles, skipped sealant, and ignored building codes rank among the most frequent installation errors. After installation, quarterly debris clearing, joint inspections, and slope verification protect the system from progressive drainage failure.
For homeowners who want to bypass retrofit complexity entirely, professionally designed Alumawood pergolas and louvered roof systems route water through concealed internal channels built directly into the structure’s framework.
What Types of Gutters Work Best on a Pergola?
The types of gutters that work best on a pergola are K-style, half-round, box, and seamless profiles. Each style offers distinct advantages in capacity, aesthetics, and maintenance depending on your pergola’s design and local rainfall.
K-Style Gutters
K-style gutters are the most common residential gutter profile, featuring a flat back and a decorative front that resembles crown molding. Their angular interior channel holds more water per linear foot than most alternatives, making them well suited for pergolas in areas with moderate to heavy rainfall. A 5-inch K-style gutter holds approximately 1.2 gallons of water per foot, providing strong drainage capacity even on compact structures. The flat back mounts flush against fascia boards or pergola beams, simplifying installation. However, the angular shape can trap leaves and debris in its corners, so pairing K-style gutters with gutter guards is a practical choice for pergolas near trees.
Half-Round Gutters
Half-round gutters are trough-shaped profiles with a smooth, curved interior that complements traditional and rustic pergola designs. According to Joyland Roofing, half-round gutters tend to clog less because their rounded interior allows debris to wash through more easily, though they may hold only four inches of flow when new compared to K-style gutters. This lower capacity means half-round profiles work best on smaller pergolas or in regions with lighter rainfall. Their open shape also makes cleaning straightforward. For homeowners prioritizing a classic aesthetic over maximum volume, half-round gutters deliver reliable performance with less maintenance effort.
Box Gutters
Box gutters are large, rectangular channels typically built into the structure rather than mounted externally. Their high-volume design suits oversized pergolas or commercial-grade installations where standard profiles cannot handle the water load. Because box gutter performance depends heavily on inflow rate and slope, precise pitch calculations are essential during installation. A deficit in box gutter depth can compromise the entire drainage system, so oversizing is safer than undersizing. Box gutters often require custom fabrication, which increases cost and installation complexity compared to off-the-shelf options. For most residential pergolas, they represent more capacity than necessary.
Seamless Gutters
Seamless gutters are custom-fabricated on-site from a single continuous piece of metal, eliminating the joints where sectional gutters commonly leak. A 5-inch seamless gutter can handle about 5,500 square feet of drainage area, while a 6-inch version manages up to 7,900 square feet, according to Trico Exteriors. The absence of seams reduces long-term maintenance and minimizes weak points that could fail under heavy water flow. Professional installation is required since the gutters are formed using portable roll-forming machines. For pergola owners seeking the most durable, low-maintenance option, seamless gutters consistently outperform sectional alternatives. With gutter type selected, preparing the pergola structure is the next critical step.
What Tools and Materials Do You Need to Install Pergola Gutters?
The tools and materials you need to install pergola gutters include measuring and cutting equipment, mounting hardware, gutter sections, sealant, and downspout components. Below is a complete breakdown organized by category.
Measuring and layout tools:
- Tape measure (minimum 25 feet)
- Chalk line for marking slope
- Level (4-foot recommended)
- Pencil or marker
Cutting and fastening tools:
- Tin snips or aviation snips for cutting gutter sections
- Power drill with hex-head driver bit
- Hacksaw or miter saw with a metal-cutting blade
- Pop rivet gun for joining sections
Mounting hardware:
- Gutter hangers or brackets (spaced no more than three feet apart under normal conditions, per Art of Gutter spacing guidelines)
- Stainless steel or galvanized screws rated for outdoor use
- Fascia boards, if your pergola lacks a flat mounting surface
Gutter system components:
- Gutter sections (K-style, half-round, or box profile)
- Inside and outside corner pieces
- End caps
- Downspout elbows and extensions
- Drop outlets connecting gutters to downspouts
Sealing and finishing supplies:
- Gutter sealant or silicone caulk for joints and end caps
- Expansion joints for aluminum or vinyl gutters, which expand and contract at different rates than wood or metal pergola structures
Material selection matters as much as having the right tools. Aluminum gutters pair well with most pergola types because of their lightweight, rust-resistant properties. For wood pergolas, stainless steel fasteners prevent galvanic corrosion between dissimilar metals. Matching your hardware to your pergola material avoids long-term issues like pulled fasteners or buckled gutter runs.
With your tools and materials assembled, the next step is preparing the pergola structure itself.
How Do You Prepare a Pergola for Gutter Installation?
You prepare a pergola for gutter installation by evaluating structural capacity, establishing proper slope, and planning downspout placement. These three steps prevent costly rework and ensure effective drainage.
How Do You Assess the Pergola’s Structural Integrity?
You assess the pergola’s structural integrity by inspecting the beams, posts, and rafters for signs of damage, rot, or weakness before adding any gutter hardware. Gutters filled with rainwater add considerable weight, so every attachment point must be sound.
Key areas to check include:
- Fascia or beam faces where brackets will mount; look for cracks, soft spots, or corrosion.
- Post-to-beam connections for loose bolts, corroded fasteners, or visible shifting.
- Rafter ends for splitting or separation from the main beam.
Wood pergolas require close inspection for moisture damage, while aluminum and vinyl structures need checks for dented or bent members. In storm-prone regions, understanding how patio covers withstand monsoon winds and rain helps determine whether your structure needs additional reinforcement before adding gutter hardware. Any compromised component should be repaired or reinforced before installation begins. Skipping this step is one of the most common reasons gutter systems fail prematurely.
How Do You Determine the Correct Slope for Drainage?
You determine the correct slope for drainage by setting a pitch of 1/4 inch per 10 feet of gutter run, which is the industry standard for consistent water flow toward the downspout. Without adequate slope, water sits in the channel and eventually overflows or corrodes the material.
To set the slope:
- Mark the high point at the end farthest from the planned downspout.
- Use a chalk line and level to snap a reference across the fascia or beam face.
- Lower the downspout end by 1/4 inch for every 10 feet of gutter length.
According to a ScienceDirect study on box gutter performance, gutter depth deficits and incorrect slope are primary concerns for drainage system failure. For pergola runs longer than 30 feet, consider sloping from the center toward downspouts at both ends to prevent water from traveling too far in a single channel. A pergola with a solid roof requires even more precise slope planning, since solid panels capture 100% of rainfall and direct the full volume into the gutter system.
Where Should You Position the Downspouts?
You should position the downspouts at the lowest point of each gutter run, ideally at corners or along posts where the vertical pipe can follow the pergola structure discreetly. Proper placement directs water away from the foundation, seating areas, and foot traffic zones.
Factors that determine optimal positioning include:
- Gutter run length: runs over 30 feet benefit from a downspout at each end.
- Landscape grading: route discharge toward areas that slope away from the structure.
- Proximity to hardscaping: keep outflow at least 4 to 6 feet from patios, walkways, and foundation walls.
Each downspout should connect to a ground-level splash block, extension, or underground drain line. Planning these exit points before mounting any brackets saves significant time during the actual installation.
With preparation complete, the next step is mounting the gutter system itself.

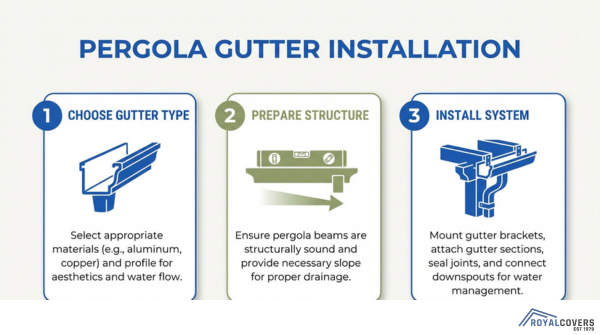

How Do You Install Gutters on a Pergola Step by Step?
You install gutters on a pergola step by step by attaching fascia boards, mounting brackets at the correct slope, cutting gutter sections to length, sealing all joints, and connecting downspouts. Each step below covers one phase of the process.
How Do You Attach Fascia Boards to a Pergola Without Fascia?
You attach fascia boards to a pergola without fascia by securing a flat mounting board directly to the pergola’s outer beam or rafters. This board creates the vertical surface that gutter brackets need for proper attachment.
The process involves:
- Selecting a pressure-treated or composite board that matches the pergola’s beam depth.
- Pre-drilling pilot holes through the board into the pergola’s structural members.
- Fastening with stainless steel or galvanized lag screws rated for outdoor use.
- Verifying the board sits flush and level before proceeding to bracket installation.
Without this step, most gutter systems lack a reliable mounting plane. For pergolas with decorative rafter tails, rafter-mount brackets offer an alternative that preserves the open aesthetic while still supporting the gutter channel.
How Do You Mount the Gutter Brackets and Hangers?
You mount gutter brackets and hangers by fastening them to the fascia board at consistent intervals while maintaining the slope established during preparation. Proper spacing prevents sagging and ensures the gutter holds its pitch over time.
According to Art of Gutter, gutter hangers should be installed no more than three feet apart under normal conditions, though in cold regions with heavy snow, experts suggest spacing them every two feet.
Key mounting steps include:
- Marking the high point and low point on the fascia to establish the slope line.
- Snapping a chalk line between those marks as a bracket alignment guide.
- Securing the first bracket at the high end and the last bracket near the downspout outlet.
- Filling in remaining brackets at evenly spaced intervals along the chalk line.
How Do You Cut and Fit the Gutter Sections?
You cut and fit gutter sections by measuring the full run length, marking each piece with a straight edge, and cutting with tin snips or a fine-tooth hacksaw. Aluminum gutters cut cleanly with aviation snips; vinyl sections respond best to a miter saw with a fine blade.
Essential fitting guidelines include:
- Allowing a slight overlap of two to three inches at section joints for secure connections.
- Notching the downspout outlet hole before mounting the gutter in the brackets.
- Deburring all cut edges to prevent water turbulence and sealant failure.
- Test-fitting each section in the brackets before applying sealant.
Each piece should seat firmly in every hanger without bowing or lifting at any point along the run.
How Do You Seal the Joints and End Caps?
You seal the joints and end caps by applying a continuous bead of silicone-based gutter sealant to every connection point before pressing the components together. Watertight joints prevent leaks that can undermine the entire drainage system.
Follow this sealing sequence:
- Clean the mating surfaces with a dry cloth to remove debris and oils.
- Apply gutter sealant along the inside overlap of each section joint.
- Press the overlapping sections firmly together and secure with sheet metal screws or pop rivets.
- Seal each end cap by running sealant around the interior rim before snapping or crimping it in place.
- Run a finishing bead of sealant over every exterior rivet or screw head.
Skipping even one connection point creates a weak link that worsens over time, particularly when thermal expansion stresses the joints seasonally.
How Do You Connect and Secure the Downspouts?
You connect and secure the downspouts by attaching a drop outlet at the gutter’s low point, joining elbow fittings to angle the pipe against the pergola post, and fastening the assembly with wall straps or post brackets.
The connection steps are:
- Insert the drop outlet into the pre-cut hole in the gutter trough and seal around the flange.
- Attach an upper elbow to the outlet, angling it toward the nearest post.
- Cut a straight downspout section to bridge the distance between the upper and lower elbows.
- Secure the lower elbow to direct water away from the pergola’s foundation zone.
- Fasten downspout straps every four to six feet along the post to prevent movement.
Directing the outflow at least four feet from any footing protects the structure’s base from moisture damage. With downspouts secured, routine seasonal inspections keep the entire system performing reliably.
How Does Gutter Installation Differ by Pergola Material?
Gutter installation differs by pergola material because wood, aluminum, and vinyl each require different fasteners, mounting techniques, and thermal expansion allowances. Since the types of pergola range from traditional wood frames to modern Alumawood and vinyl systems, matching your gutter hardware to the specific structure is essential. The sections below cover material-specific installation approaches.
How Do You Install Gutters on a Wood Pergola?
You install gutters on a wood pergola by pre-drilling pilot holes into the beam or rafter tails and securing gutter brackets with stainless steel or galvanized lag screws. Wood accepts fasteners easily, but moisture exposure at screw penetration points can cause rot over time. Sealing each pilot hole with exterior-grade caulk before driving the fastener helps prevent water infiltration.
Thermal expansion is a critical factor here. According to Spectra Gutter Systems, aluminum and vinyl gutters expand and contract at different rates than wood pergola structures, potentially leading to buckled gutters or pulled fasteners if not properly addressed. Using slotted hanger holes allows the gutter to shift slightly without stressing the wood.
Spacing brackets no more than 24 inches apart compensates for wood’s tendency to flex under load. Inspect the beam faces for splitting or soft spots before mounting; compromised wood cannot safely support a loaded gutter system.
How Do You Install Gutters on an Aluminum Pergola?
You install gutters on an aluminum pergola by using self-tapping sheet metal screws or rivets to attach brackets directly to the extruded frame members. Aluminum is often preferred for integrated pergola drainage systems due to its lightweight, rust-resistant properties and ease of integration into extruded framework components, according to Patio Covered. When choosing between a solid vs lattice Alumawood roof, solid panels simplify gutter integration since they direct all rainfall into the channel rather than allowing it to pass through.
Because the gutter and the pergola are the same material, thermal expansion rates match closely, reducing the risk of buckled joints or loosened fasteners. Avoid drilling through structural channels that carry load; instead, mount brackets to non-structural fascia rails or secondary crossmembers. Using nylon washers between dissimilar metals prevents galvanic corrosion if you pair aluminum framing with steel hardware.
How Do You Install Gutters on a Vinyl Pergola?
You install gutters on a vinyl pergola by clamping or adhesive-mounting brackets to the vinyl members rather than relying solely on screw penetrations. Vinyl is softer and more flexible than wood or aluminum, so overtightening fasteners can crack the material or strip the hole under seasonal temperature swings.
Vinyl expands significantly in heat, so every gutter run needs expansion joints spaced at manufacturer-recommended intervals. Snap-fit bracket systems designed for vinyl siding often adapt well to vinyl pergola beams. Reinforce hollow vinyl members with an internal wood or aluminum block at each bracket point to distribute load and prevent crushing.
With material-specific fastening strategies addressed, avoiding common installation mistakes protects the finished system long-term.
What Common Mistakes Should You Avoid When Installing Pergola Gutters?
The common mistakes you should avoid when installing pergola gutters include incorrect slope, ignoring local codes, undersizing gutters, and neglecting thermal expansion.
Incorrect gutter slope is the most frequent error. Flat or poorly aligned gutters create standing water that accelerates corrosion and attracts mosquitoes and wood-destroying insects, according to Mack Glass & Gutters. Always maintain 1/4 inch of drop per 10 feet of run.
Ignoring local building codes creates legal and structural problems. Pergolas may be restricted by local zoning rules to a maximum height, often between 12 and 15 feet, and gutter additions can trigger permit requirements.
Additional mistakes to avoid:
- Undersizing the gutter profile for your roof’s drainage area, which causes overflow during heavy rain.
- Spacing hangers too far apart, leading to sagging under water weight.
- Using incompatible fasteners for the pergola material, which weakens attachment points over time.
- Failing to account for thermal expansion, especially when pairing aluminum or vinyl gutters with wood structures, since mismatched expansion rates buckle gutters or pull fasteners loose.
- Skipping sealant at joints and end caps, which introduces leaks from day one.
- Directing downspouts toward the foundation instead of away from it, risking soil saturation and structural shifting.
Most of these errors share a common root: rushing the planning phase. Spending extra time on slope calculations, material compatibility checks, and code research before picking up a single tool prevents costly rework. Proper maintenance habits protect the system long term.
How Do You Maintain Gutters on a Pergola After Installation?
You maintain gutters on a pergola after installation through seasonal cleaning, slope verification, and joint inspections. These tasks prevent clogs, structural damage, and drainage failure.
Regular gutter maintenance is critical because long-term moisture exposure is significantly more destructive to outdoor structures like decks and pergolas than short-term exposure, according to Artisan Exteriors PNW. Neglecting even basic upkeep accelerates deterioration of both the gutter system and the pergola itself.
A practical maintenance schedule includes:
- Clear debris quarterly. Remove leaves, seed pods, and dirt from gutter channels to prevent blockages that redirect water onto the pergola structure.
- Flush downspouts with a garden hose. Confirm water flows freely from inlet to outlet after each cleaning.
- Inspect sealant at joints and end caps. Silicone gutter sealant degrades with UV exposure; reseal any cracked or separating seams annually.
- Verify slope alignment. Check that gutters still maintain proper pitch toward downspouts, since bracket fasteners can loosen over time from thermal cycling or wind vibration.
- Check for standing water. Pooled water inside gutter channels signals slope loss or a downstream clog, and if left unaddressed, it can freeze in winter, adding significant weight that risks structural failure or gutter detachment.
- Examine bracket and hanger connections. Tighten any loose fasteners where the gutter attaches to the pergola beam or fascia board, paying special attention to areas around downspout connections.
- Look for corrosion or paint peeling. Aluminum gutters resist rust but can develop oxidation spots at scratches; touch these up promptly to prevent spreading.
For homeowners in regions with heavy tree canopy, installing gutter guards during the original installation dramatically reduces cleaning frequency. Even with guards, an annual visual inspection remains essential since fine debris can still accumulate over time.
From a practical standpoint, most gutter failures on pergolas trace back to skipped maintenance rather than installation defects. Spending 30 minutes per season on these checks protects both the drainage system and the pergola’s structural integrity for years.
With maintenance habits established, the next consideration is whether to handle gutter installation yourself or bring in a professional.
Can You Install Gutters on a Pergola Yourself or Should You Hire a Professional?
Yes, you can install gutters on a pergola yourself if you have basic carpentry skills, but hiring a professional is safer for complex structures or integrated drainage systems. The decision depends on your pergola’s material, the drainage complexity, and local building code requirements.
A straightforward sectional gutter on a wood pergola with existing fascia boards is a manageable DIY project for experienced homeowners. Measuring slope, cutting sections, and sealing joints require precision but not specialized training. The tools and materials are widely available at home improvement stores.
However, several scenarios strongly favor professional installation:
- Aluminum or vinyl pergolas require material-specific fasteners and techniques to prevent cracking or corrosion at attachment points.
- Integrated drainage systems, where gutters channel water through structural posts, demand engineering expertise that exceeds typical DIY skill.
- Incorrect gutter slope or alignment often results in standing water, which can accelerate corrosion and attract pests like mosquitoes and wood-destroying insects, according to Mack Glass & Gutters.
- Local building codes may require permits and specific drainage capacity standards that professionals navigate routinely.
For most homeowners, the cost difference between DIY and professional installation is relatively small compared to the risk of water damage from improper drainage. A poorly pitched gutter or weak seal can quietly direct water toward foundation points and structural joints for months before the damage becomes visible. That kind of long-term moisture exposure is far more costly to repair than the original installation. When the pergola involves multiple materials, attachment to an existing roofline, or louvered systems with concealed channels, professional installation protects both the structure and the investment beneath it.
How Do Professionally Designed Pergolas Handle Drainage and Water Management?
Professionally designed pergolas handle drainage and water management through integrated gutter channels, properly sized downspouts, and engineered slope systems built directly into the structure. The sections below cover how desert-engineered Alumawood pergolas eliminate common gutter challenges and the key takeaways for pergola gutter installation.
Can a Desert-Engineered Alumawood Pergola Eliminate Gutter Challenges?
Yes, a desert-engineered Alumawood pergola can eliminate gutter challenges by incorporating drainage directly into the structure’s framework. Unlike traditional pergolas that require aftermarket gutter installation, Alumawood systems route water through concealed internal channels. According to pergola engineering experts at The Luxury Pergola, “integrated gutter systems channel rainwater through the posts and away from your living space.”
Royal Covers designs each Alumawood pergola and Equinox Louvered Roof system to manage water from the first day of installation. This approach removes the need for external brackets, exposed gutters, and the ongoing maintenance they demand. For homeowners who want reliable drainage without compromising aesthetics, a purpose-built structure outperforms any retrofit solution.
What Are the Key Takeaways About How to Install Gutters on a Pergola?
The key takeaways about how to install gutters on a pergola are:
- Choose the right gutter type for your pergola material and local rainfall intensity.
- Maintain a slope of 1/4 inch per 10 feet to ensure proper water flow toward downspouts.
- Space hangers no more than three feet apart, or two feet in regions with heavy snow loads.
- Seal all joints and end caps to prevent leaks at connection points.
- Account for thermal expansion differences between gutter and pergola materials.
- Verify local building code requirements, since jurisdictions set specific drainage capacity standards for stormwater management.
For homeowners who prefer to skip the complexity of retrofit gutter installation entirely, Royal Covers offers Alumawood pergolas and Equinox Louvered Roofs with factory-integrated drainage, backed by over 45 years of desert-climate expertise in the Phoenix area.
