A motorized pergola is an outdoor shade structure with a roof system that adjusts automatically via a built-in motor, using adjustable louvers, sensors, and smart controllers to provide on-demand shade, rain protection, and ventilation.
This guide covers motorized pergola types and mechanics, site preparation and permitting, step-by-step frame and roof installation, common mistakes and ongoing maintenance, and cost considerations for DIY versus professional builds.
We break down the three primary motorized pergola styles (louvered, retractable canopy, and rolling shade) and explain how each roof mechanism operates using low-voltage motors powered by a transformer that converts standard 120V to 24V DC.
Planning and preparation sections detail the site measurements, structural assessments, electrical wiring, and permit checks required before any posts go into the ground, including slab thickness requirements and setback regulations that vary by jurisdiction.
The installation walkthrough covers anchoring support posts to concrete, attaching header beams within proper overhang limits, mounting louvered panels into channel tracks, wiring the motor and control box, and programming remote or smart home integration through platforms compatible with voice assistants.
We identify the most damaging installation errors, including shallow footings that cause structural shifting, improper wiring that creates fire hazards, and poor drainage planning from unlevel posts that strains the motor and corrodes the frame.
Maintenance protocols address lubrication schedules, safe cleaning pressure limits for powder-coated aluminum, and when to recalibrate the motor system after power outages or weather events.
Cost breakdowns show installed pricing ranges by project size and approach, with guidance on when DIY savings justify the effort and when professional installation delivers better long-term value.
What Is a Motorized Pergola and How Does It Work?
A motorized pergola is an outdoor shade structure with a roof system that adjusts automatically via a built-in motor. The sections below cover its core components, operating mechanism, and power requirements.

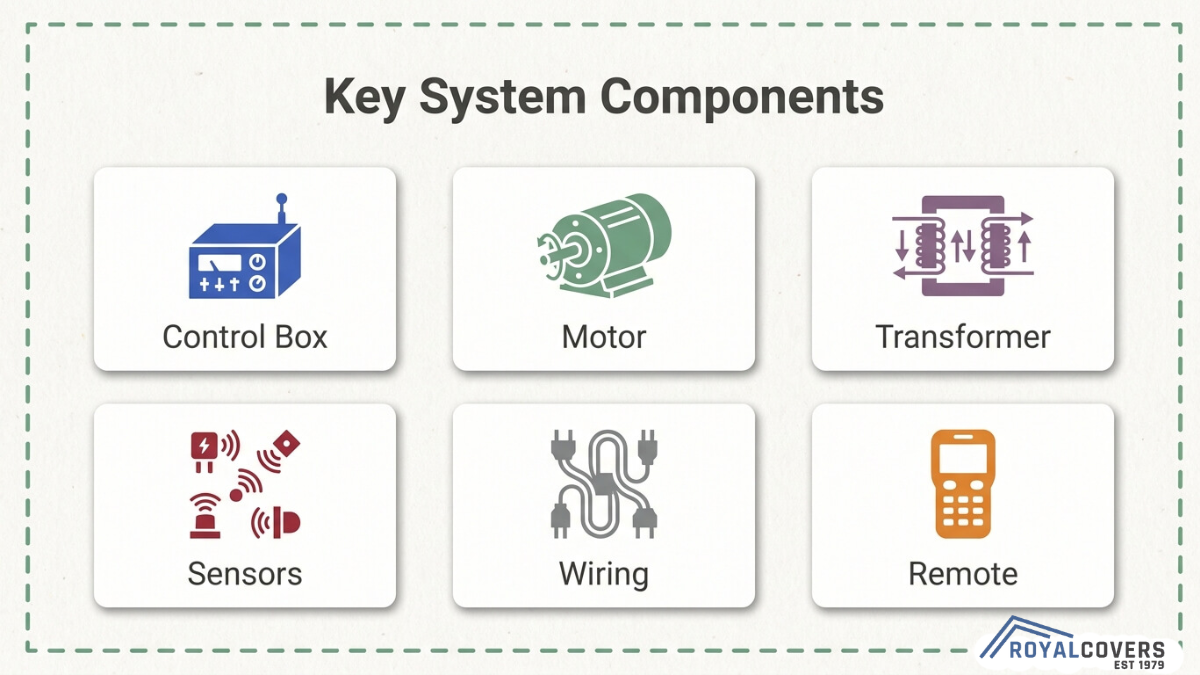

What Components Make Up a Motorized Pergola System?
The components that make up a motorized pergola system include adjustable louvers, smart motors, sensors, a control box, a power supply, and wiring connectors. These elements work together to provide shade, rain protection, and ventilation, with some systems featuring automated slats that adapt to weather conditions.
Key components in a typical motorized pergola kit include:
- A control box, such as the Somfy SC-2 for up to 2 motors
- A 24V power supply from a transformer
- Inline splice connectors for motor wiring
- Wind and rain sensors for automated response
- Low voltage lighting transformers that reduce standard 120 or 277 volts to 12 or 24 volts for safer outdoor use
According to StruXure, modern motorized pergolas are powered by motion control technology like Somfy motors, which allow exact adjustment of louvers and integrate with central apps, remotes, or voice assistants via platforms like the Bond Operating System. For homeowners considering a motorized system, understanding these components upfront simplifies both budgeting and installation planning.
How Does the Motorized Louvered Roof Mechanism Operate?
The motorized louvered roof mechanism operates by using a motor-driven axle to simultaneously rotate all louver blades between open and closed positions. When the motor engages, it turns a series of connected linkages that tilt each louver in unison, allowing precise control over sunlight, airflow, and rain protection.
In the fully open position, louvers sit flat to allow maximum ventilation and light. When closed, they overlap to create a watertight seal that channels rainwater into integrated gutters. Dr. S. Suresh Kumar notes in the Plant Engineering Handbook that louvered roof systems also reduce energy losses during heating by controlling airflow. This dual functionality makes the automated pergola both a motorized shade structure and a climate management tool for outdoor spaces.
What Power Source Does a Motorized Pergola Require?
A motorized pergola requires a dedicated 120V electrical circuit as its primary power source. A transformer then converts this standard line voltage to low-voltage 24V DC power, which safely drives the motors and control electronics.
The electrical setup typically involves:
- A 120V outlet or hardwired connection near the pergola’s control box
- A transformer to step down voltage for motor operation
- Conduit-protected wiring routed through the frame
According to Regency Supply, low voltage lighting systems for pergolas use a transformer to reduce standard line voltage (usually 120 or 277 volts) to 12 or 24 volts for safer outdoor use. Most installations benefit from a licensed electrician running the dedicated circuit, especially since many jurisdictions require permits for outdoor 120V wiring.
Understanding power requirements early in the planning stage prevents costly retrofits once the frame is already installed.
What Are the Types of Motorized Pergolas You Can Install?
The types of motorized pergolas you can install are louvered, retractable canopy, and rolling shade models. Each type uses a different roof mechanism to control sunlight, airflow, and weather protection.
Motorized Louvered Pergola
A motorized louvered pergola is a structure with adjustable aluminum slats that rotate on axis via a built-in motor. Tilting the louvers open allows full sunlight and airflow; closing them creates a solid, weather-tight roof. According to StruXure NorCal, motorized pergolas use adjustable louvers, smart motors, and sensors to provide shade, rain protection, and ventilation, with some systems featuring automated slats that adapt to weather conditions. Most louvered systems integrate with remotes, apps, or voice assistants for precise control. For homeowners who want year-round usability with one structure, the louvered pergola remains the most versatile option available.
Motorized Retractable Canopy Pergola
A motorized retractable canopy pergola uses a fabric or PVC panel that slides along tracks mounted to the frame’s top rails. When extended, the canopy provides full shade; when retracted, it exposes the open sky. This type suits homeowners who prefer flexible sun exposure without permanently fixed louvers. Canopy fabrics are typically UV-resistant and water-repellent, though they offer less rain protection than a solid louvered system. The motor mechanism is simpler than louvered designs, which often translates to a lower upfront cost. Retractable canopy pergolas work well for patios where aesthetics and partial coverage are priorities over full weatherproofing.
Motorized Rolling Shade Pergola
A motorized rolling shade pergola incorporates vertical drop screens or horizontal rolling shades powered by a tubular motor. These shades deploy from a cassette housing mounted along the pergola beams, blocking side sun, wind, or insects. Unlike louvered or canopy types that control overhead exposure, rolling shade systems manage lateral elements. They are commonly paired with a fixed or louvered roof for comprehensive protection on all sides. This combination is particularly effective in regions with intense low-angle sun or frequent wind. Understanding which pergola type matches your outdoor goals helps determine the right preparation steps before installation begins.

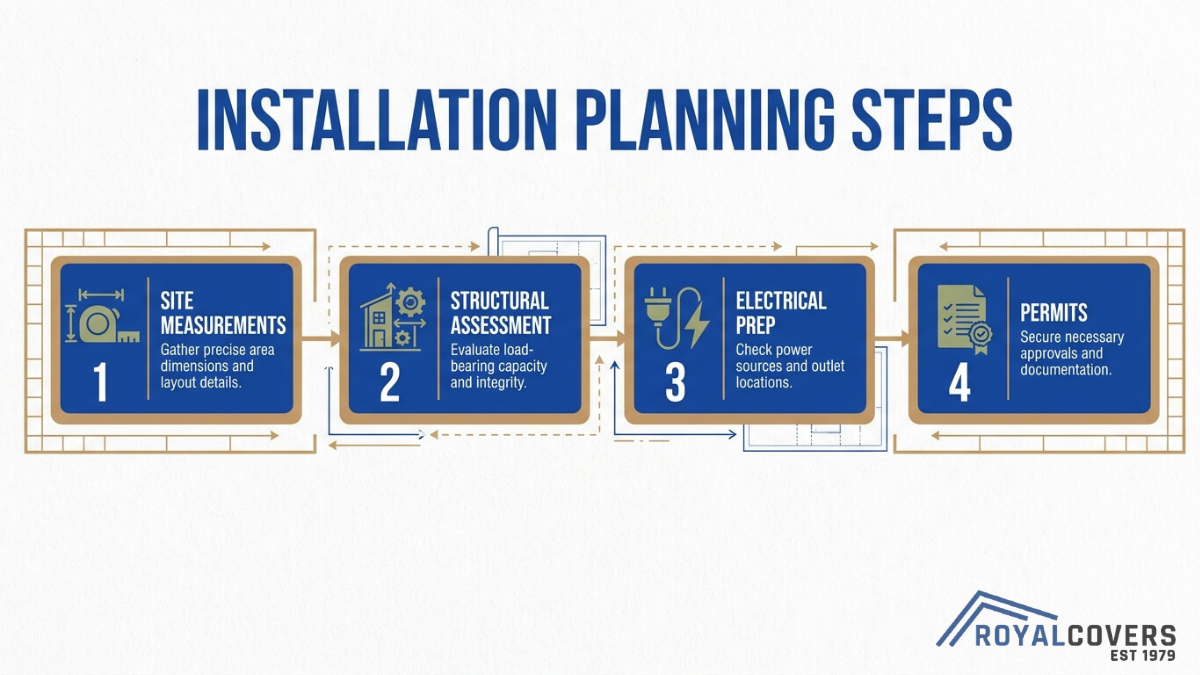

How Do You Plan and Prepare for Motorized Pergola Installation?
You plan and prepare for motorized pergola installation by measuring your site, verifying structural support, arranging electrical wiring, and checking local permit requirements. Each step prevents costly errors during the build.
What Site Measurements and Clearances Are Needed?
The site measurements and clearances needed include the overall footprint dimensions, height to any overhead obstructions, and setback distances from property lines and existing structures. Measure the intended installation area with a tape measure and string line to establish exact post locations. Allow clearance for louver operation overhead and sufficient space around the perimeter for proper airflow and future maintenance access. Most jurisdictions enforce side-yard setbacks, so confirm these distances before finalizing your layout.
How Do You Assess Your Patio or Deck for Structural Support?
You assess your patio or deck for structural support by evaluating the thickness, condition, and composition of the mounting surface. The concrete slab must be at least 4 inches thick in anchor zones, with anchors placed several inches away from slab edges and control joints to prevent cracking. For wooden decks, inspect the joists, ledger board, and footings for rot or insufficient load capacity. A motorized pergola with aluminum framing and louvered panels imposes concentrated loads at each post location, so the substrate must handle both dead weight and wind uplift forces without shifting.
What Electrical Wiring Preparation Is Required Before Installation?
The electrical wiring preparation required before installation involves running a dedicated circuit to the pergola location for the motorized louver system. Most motorized pergolas operate on low voltage (12V or 24V) supplied by a transformer, but that transformer still requires a standard 120V outlet or hardwired connection nearby. Outdoor 120V cables must be buried 18 inches underground, placed in conduit, and connected through sealed junction boxes. According to Regency Supply, low voltage lighting systems use a transformer to reduce standard line voltage to 12 or 24 volts for safer outdoor use. Hiring a licensed electrician ensures code compliance and protects the motor’s control box from voltage irregularities.
Do You Need a Permit to Install a Motorized Pergola?
Yes, you typically need a permit to install a motorized pergola, though requirements vary by jurisdiction and structure size. Pergola size restrictions often set thresholds, such as 120 to 200 square feet of footprint or certain height limits, that determine whether a building permit applies. Attaching a pergola ledger to a home usually requires a permit regardless of size. According to The Luxury Pergola, a free-standing pergola must often be designed to handle at least 105 mph wind speeds to pass permitting or HOA processes. Checking with your local building department and homeowners association early prevents delays and redesigns once construction begins.
What Tools and Materials Do You Need to Install a Motorized Pergola?
You need a combination of standard construction tools, concrete anchoring equipment, and motorized system components to install a motorized pergola. The essentials fall into three categories: hand and power tools, anchoring hardware, and electrical kit components.
Standard construction tools include:
- Tape measure and string line for layout
- Level for plumb and alignment checks
- Drill/driver and wrenches for assembly
- Saw for trimming rafters
- Safety glasses and work gloves
Concrete anchoring materials require:
- Hammer drill with masonry bits
- Concrete anchors (wedge, sleeve, or screw type)
- Shop vacuum to clear dust from drilled holes
Motorized system components typically included in kits:
- Control box (such as a Somfy SC-2 for up to 2 motors)
- 24V power supply from a transformer
- Inline splice connectors for motor wiring
According to a Zen Pergolas installation guide, anchoring a pergola to a concrete slab specifically requires a hammer drill with masonry bits, concrete anchors, and a shop vacuum to remove dust from the holes, ensuring secure fastener grip.
Having the right tools staged before installation day prevents delays and rework. For motorized systems, the electrical components are often kit-specific, so verify your manufacturer’s parts list before sourcing additional materials. With your tools and materials gathered, the next step is setting and anchoring the support posts.
How Do You Install the Motorized Pergola Frame and Posts?
You install the motorized pergola frame and posts by setting anchored support posts, attaching header and support beams, and verifying the structure is level and square.
How Do You Set and Anchor the Support Posts?
You set and anchor the support posts by positioning post bases at marked locations on a concrete slab or footings, then securing them with concrete anchors. The slab must be at least 4 inches thick in anchor zones, with anchors placed several inches away from slab edges and control joints to prevent cracking. Use a hammer drill with masonry bits to create holes, vacuum out dust, and insert wedge or sleeve anchors. Plumb each post vertically before fully tightening. Temporary bracing holds posts steady while you attach beams. This step determines the entire structure’s stability, so rushing it invites problems that compound at every subsequent stage.
How Do You Attach the Header and Support Beams?
You attach the header and support beams by lifting them into position atop the plumbed posts and fastening with through-bolts or manufacturer-specified brackets. According to a Lowe’s pergola installation guide, beam and rafter overhangs should not exceed 36 inches and purlins should not exceed 24 inches to maintain structural integrity. Tighten connections evenly on both sides to distribute load. For aluminum motorized pergola frames, use only hardware provided in the kit to preserve the powder coating. Having a helper or temporary supports prevents beams from shifting during fastening.
How Do You Ensure the Frame Is Level and Square?
You ensure the frame is level and square by measuring diagonals corner to corner; equal diagonal measurements confirm a square layout. Place a 4-foot level on each beam to check for horizontal accuracy, shimming post bases as needed. Failing to verify squareness before final anchoring leads to poor drainage, mechanical strain on the motor, and structural instability. Check level again after tightening all fasteners, since torque can shift components slightly.
With the frame secured and verified, the next step is mounting the motorized roof panels.
How Do You Install the Motorized Roof or Louvered Panel System?
You install the motorized roof or louvered panel system by mounting panels to the frame, connecting the drive motor, wiring power, and programming controls. Each step builds on the previous one.
How Do You Mount the Louvered Panels onto the Frame?
You mount the louvered panels onto the frame by sliding each panel into the pre-engineered channel tracks along the support beams. Start from one end and work sequentially, securing each louver with the manufacturer’s provided brackets and fasteners. Ensure consistent spacing between panels so the rotation mechanism operates without binding. Keep internal gutters clear of construction debris during this phase, as clogs can cause water to back up and spill over once the system is operational. Verify that each panel rotates freely before moving to the next.
How Do You Connect the Motor and Drive System?
You connect the motor and drive system by attaching the motorized actuator to the louver linkage bar, which controls simultaneous panel rotation. Position the control box in an outdoor-exposed location. According to Apollo Opening Roof’s programming documentation, motorized systems often include a freeze protection sensor that may not work properly if the control box is installed in an area without exposure to cold weather, such as inside a house or under outdoor kitchen cabinetry. Secure all mechanical connections with lock washers to prevent vibration-related loosening over time.
How Do You Wire the Motor to the Power Supply?
You wire the motor to the power supply by running a dedicated electrical line from your home’s panel to the pergola’s control box. Most motorized louvered systems use a transformer that converts 120V line voltage down to 24V for the motor. Route wiring through the hollow aluminum frame channels to protect cables from UV exposure and moisture. All outdoor connections require weatherproof junction boxes and proper grounding. For safety and code compliance, hiring a licensed electrician for this step is strongly recommended.
How Do You Program the Remote Control or Smart Home Integration?
You program the remote control or smart home integration by syncing the handheld remote to the motor’s control box, then connecting the system to your preferred platform. According to StruXure, smart pergolas merge motorized louvers with weatherproof TVs, speakers, and app-controlled LED lighting, and can be programmed with schedules to respond throughout the day. Systems powered by Somfy motors integrate with voice assistants and central apps for seamless control. Wind and rain sensors can also be calibrated during setup to trigger automatic louver closure.
With the roof system fully installed and programmed, avoiding common installation mistakes protects your investment long-term.
What Are Common Motorized Pergola Installation Mistakes to Avoid?
Common motorized pergola installation mistakes to avoid include shallow post footings, improper electrical wiring, and poor drainage planning. According to Zen Pergolas, common DIY assembly mistakes include failing to lay out post base locations squarely and not checking diagonals before anchoring.
What Happens If Post Footings Are Not Deep Enough?
Post footings that are not deep enough cause the motorized pergola to shift, lean, or fail under wind and mechanical loads. Shallow footings lack the lateral resistance needed to stabilize tall posts, especially when the motorized roof adds weight and vibration during operation. Most local building codes require footings to extend below the frost line or to a minimum depth specified for your soil type. Skipping a proper engineering assessment before pouring concrete often leads to costly rework. This single shortcut undermines the entire structure’s longevity.
Why Is Improper Wiring Dangerous for Motorized Pergolas?
Improper wiring is dangerous for motorized pergolas because it creates fire hazards, motor malfunctions, and electrical shock risks. Motorized louver systems require dedicated circuits with properly rated conductors, sealed junction boxes, and GFCI protection for outdoor use. Mixing low-voltage motor wiring with standard 120V line voltage without correct separation can damage the control box and void manufacturer warranties. Undersized wire gauges overheat under load, while exposed connections corrode quickly outdoors. Hiring a licensed electrician for the electrical portion is one of the most important decisions in any motorized pergola project; the cost is minimal compared to the safety risk.
How Does Poor Drainage Planning Affect a Motorized Pergola?
Poor drainage planning causes water to pool on louver panels, overflow internal gutters, and accelerate corrosion of the motorized pergola’s frame and mechanical components. According to a motorized pergola installation guide published on Scribd, improper alignment and unlevel posts are top installation errors that lead to poor drainage, mechanical strain on the motor, and structural instability. When louvers cannot shed water along their designed pitch, standing moisture seeps into motor housings and electrical connections. Proper installation requires verifying that posts are plumb, beams slope toward integrated gutter channels, and downspout outlets direct water away from the foundation. Overlooking drainage during installation often proves more expensive to fix than the pergola itself.
With installation mistakes identified, consistent post-installation maintenance keeps the system running smoothly.
How Do You Maintain a Motorized Pergola After Installation?
You maintain a motorized pergola after installation through regular lubrication, gentle cleaning, and periodic motor recalibration. These three practices protect the mechanism and extend the system’s lifespan.
How Often Should You Lubricate the Motor and Moving Parts?
You should lubricate the motor and moving parts every six months, or quarterly in dusty or high-use environments. Silicone-based lubricants work best on louver pivot points, hinges, and track channels because they repel dust rather than attract it. Avoid petroleum-based greases, which can gum up small motor gears over time. Consistent lubrication reduces mechanical strain on the drive system, which is especially important given that beam and rafter overhangs should not exceed 36 inches to maintain structural integrity, according to a Lowe’s pergola installation guide. A well-lubricated system operates quietly and places less stress on the motor during each rotation cycle.
How Do You Clean Louvered Panels Without Damaging the Mechanism?
You clean louvered panels without damaging the mechanism by using low-pressure water, mild soap, and soft-bristle brushes. Key cleaning guidelines include:
- Open louvers fully before washing to access all surfaces.
- Limit pressure washing to 1,500 to 2,000 PSI; higher pressure can dislodge powder coating from the aluminum frame.
- Rinse internal gutters to prevent debris buildup that causes water to back up and spill over.
- Avoid abrasive cleaners or steel wool, which scratch protective finishes.
Cleaning every two to three months prevents organic matter from hardening on the louvers and corroding seals around the motor housing.
When Should You Recalibrate or Reset the Motor System?
You should recalibrate or reset the motor system when louvers fail to fully open or close, respond inconsistently to remote commands, or drift out of alignment after a power outage. Most systems with Somfy or similar controllers have a built-in reset sequence accessible through the remote or app. If a freeze protection sensor is installed, verify that the control box remains exposed to ambient outdoor temperatures; installing it inside a house or under cabinetry can cause false readings and erratic motor behavior. Recalibration once per year, or after any significant weather event, keeps automated responses accurate and prevents unnecessary strain on the drive components.
With maintenance habits established, understanding installation costs helps you budget for the full project lifecycle.
How Much Does It Cost to Install a Motorized Pergola?
The cost to install a motorized pergola ranges from $7,500 to $22,500, depending on whether you choose DIY or professional installation and the overall size of the structure. Below, each factor is broken down by approach and scale.
How Much Does a DIY Motorized Pergola Installation Cost?
A DIY motorized pergola installation costs between $3,000 and $7,000 for the kit alone, with total project costs averaging approximately $13,700 when factoring in materials, electrical work, and finishing. According to Angi’s 2026 cost data, the normal installed range falls between $7,500 and $22,500, with per-square-foot pricing of $60 to $130 for standard motorized models and $80 to $180 for high-end smart pergolas.
Ongoing maintenance adds $2 to $5 per square foot every one to three years for sealant or paint application. For homeowners comfortable with structural assembly and basic wiring, DIY offers meaningful savings, though the upfront material investment remains substantial.
How Much Does Professional Motorized Pergola Installation Cost?
Professional motorized pergola installation costs more due to labor, which typically accounts for 20% to 30% of the total project cost. On a $13,700 average project, that translates to roughly $2,740 to $4,110 in labor alone.
This premium covers precise anchoring, proper electrical connections, and structural verification that protect the motor system and frame integrity long-term. For motorized systems where misalignment can cause mechanical strain and drainage failures, professional installation often proves more cost-effective than correcting DIY errors after the fact.
How Does Pergola Size Affect Total Installation Cost?
Pergola size affects total installation cost proportionally, since pricing is calculated per square foot. A 10×10-foot motorized pergola starts around $5,000 to $7,000, while a 20×20-foot custom installation can exceed $72,000 depending on materials and smart features selected.
According to Business Research Insights, the global pergolas market was valued at USD 1.57 billion in 2025 and is projected to reach USD 2.09 billion by 2034, reflecting steady demand for larger, more sophisticated outdoor structures. This growing market trend suggests that investing in a properly sized motorized pergola delivers strong long-term property value relative to its upfront cost.
With installation costs clarified, understanding whether to DIY or hire a professional helps finalize your decision.
Should You DIY or Hire a Professional for Motorized Pergola Installation?
The decision to DIY or hire a professional for motorized pergola installation depends on your technical skill level, comfort with electrical work, and project complexity. Below, we cover the skills required, the risks involved, and when professional help becomes the smarter choice.
What Skills Are Needed to DIY a Motorized Pergola?
The skills needed to DIY a motorized pergola include structural carpentry, basic electrical wiring, precision measurement, and familiarity with motorized control systems. Specifically, a successful DIY installation requires:
- Proficiency with a hammer drill, masonry bits, and concrete anchors for secure post mounting
- Ability to read and follow wiring diagrams for 24V motor connections and control boxes
- Knowledge of how to check diagonals and use a level to ensure the frame is perfectly square
- Comfort working at height with heavy beams and louvered panels
According to Zen Pergolas, anchoring a pergola to a concrete slab requires a hammer drill with masonry bits, concrete anchors, and a shop vacuum to remove dust from drilled holes. Without confidence across all these disciplines, the project carries significant risk.
What Are the Risks of Installing a Motorized Pergola Yourself?
The risks of installing a motorized pergola yourself include structural failure, electrical hazards, voided warranties, and permit violations. Improper post alignment or inadequate anchoring can lead to poor drainage, mechanical strain on the motor, and structural instability, according to a motorized pergola installation guide published on Scribd. Additional risks include:
- Incorrectly wired motors creating fire or shock hazards
- Inadequate concrete slab thickness causing anchor pullout
- Failed permit inspections requiring costly rework
- Damage to powder-coated aluminum components from improper handling
For most homeowners, the financial savings of a DIY approach rarely justify the liability exposure when motorized components and structural loads are involved.
When Does Hiring a Professional Installer Make More Sense?
Hiring a professional installer makes more sense when your project involves electrical integration, permits, large spans, or attachment to an existing structure. According to Angi, DIY motorized pergola kits start around $3,000 to $5,000, but professional installation is often recommended to ensure the structure is securely anchored for safety. Professional installation becomes essential when:
- Local codes require engineered drawings or inspections
- The pergola attaches to a home ledger board, requiring specific flashing and fasteners
- Smart home integration demands programming of Somfy motors, sensors, or app controls
- The structure must withstand high wind loads in exposed locations
A licensed installer eliminates guesswork, handles permitting, and ensures the motorized system operates reliably from day one. With motorized pergola decisions clarified, professional-grade installation ensures lasting performance in demanding climates.
How Can Professional Installation Ensure Your Motorized Pergola Lasts in Extreme Climates?
Professional installation ensures your motorized pergola lasts in extreme climates by providing secure anchoring, precise alignment, and climate-specific engineering that DIY approaches often lack. The following sections cover Royal Covers’ desert-engineered systems and key installation takeaways.
Can Royal Covers’ Desert-Engineered Pergola Systems Solve Heat and Durability Concerns?
Yes, Royal Covers’ desert-engineered pergola systems can solve heat and durability concerns. With over 45 years of experience installing shade structures specifically for Arizona’s extreme sun and temperatures, Royal Covers uses premium materials and proven methods tailored to desert conditions. According to Angi, DIY motorized pergola kits start around $3,000 to $5,000, but professional installation is often recommended to ensure the structure is securely anchored for safety. Royal Covers employs full-time, continuously trained installation teams managed by a dedicated installation manager, ensuring precise post alignment, proper anchoring depth, and correct drainage planning that prevent the mechanical strain and structural instability common in self-installed systems.
What Are the Key Takeaways About Motorized Pergola Installation We Covered?
The key takeaways about motorized pergola installation are:
- Motorized pergolas require proper site preparation, including verifying slab thickness, electrical access, and permit requirements.
- Precise post alignment and level framing prevent drainage failures, motor strain, and long-term structural damage.
- Correct wiring, sensor placement, and smart home integration demand careful planning during installation.
- Professional installation reduces risk in extreme climates where heat expansion, wind loads, and UV exposure accelerate wear on improperly secured structures.
- Investing in expert installation from a company like Royal Covers protects both the structure’s longevity and the homeowner’s safety.
For homeowners in the Phoenix area, Royal Covers offers free design consultations to create a motorized pergola system built to thrive in desert conditions.
