Attaching a swing to an Alumawood pergola is not safe without professional engineering modifications, because these hollow aluminum structures are designed for static roof loads, not the concentrated, repetitive forces a swing generates.
This guide covers Alumawood construction and its structural limits, the dynamic loads swings produce, failure risks in unmodified pergolas, how different swing types change the danger level, reinforcement options, warranty implications, structural inspection, and planning a pergola purpose-built for swing support.
Alumawood pergolas consist of thin-walled, hollow aluminum extrusions engineered to distribute weight uniformly across beams and rafters. Unlike solid wood, these profiles offer minimal material for fasteners to grip, making them vulnerable to point-load stress that swings demand.
Swinging motion multiplies a rider’s body weight by two to three times at the arc’s lowest point, channeling hundreds of pounds of dynamic force through a single bolt hole. Even a standard porch swing with two adults can concentrate 400 to 600 pounds on attachment points rated only for evenly spread loads of 10 pounds per square foot.
Repetitive load cycles cause fatigue cracking in hollow aluminum, while fasteners can progressively enlarge their holes and tear through thin walls without visible warning. Wind gusts compound the problem by adding lateral forces that overlap with swing momentum.
Swing types carry different risk profiles; children’s high-arc swings generate the largest force multipliers, while stationary porch swings and egg chairs produce lower (but still problematic) concentrated loads. Reinforcement strategies range from steel distribution brackets to freestanding frames to dedicated swing beams, each requiring professional engineering review.
Manufacturer warranties typically exclude damage from unauthorized structural modifications, and no standard Alumawood evaluation report includes swing-load testing. Royal Covers can design custom pergolas engineered for swing support from the ground up, bypassing the limitations of retrofit solutions entirely.
What Is an Alumawood Pergola and How Is It Built?
An Alumawood pergola is a patio cover structure made from extruded aluminum components designed to replicate the appearance of wood. Understanding its materials and construction method is essential before evaluating whether it can support a swing.
What Materials Make Up an Alumawood Pergola Structure?
The materials that make up an Alumawood pergola structure are hollow, extruded aluminum panels finished with a baked-on enamel coating that mimics wood grain texture. Unlike solid lumber, these components consist of thin-walled aluminum channels and beams engineered primarily for overhead shade and weather resistance.
Key structural components include:
- Posts: Hollow aluminum columns that transfer roof loads to the foundation.
- Beams (headers): Horizontal members spanning between posts, carrying the weight of rafters above.
- Rafters: Parallel members running across beams to support lattice panels or solid roof sections.
- Lattice or solid panels: Top coverings that provide shade while completing the roof plane.
Each piece interlocks through a system of screws, brackets, and internal connectors rather than the through-bolted or notched joinery found in traditional timber framing. This hollow-profile design keeps the structure lightweight and corrosion-resistant, but it also means the walls of each component are relatively thin compared to solid wood equivalents.
How Does Alumawood Construction Differ From Solid Wood Pergolas?
Alumawood construction differs from solid wood pergolas in material density, load behavior, and intended structural purpose. Solid wood beams, typically 4×6 or 6×6 lumber, are dense throughout their cross-section. Alumawood beams are hollow aluminum extrusions with wall thicknesses measured in fractions of an inch.
This distinction matters for swing attachment because solid wood allows lag bolts to grip deep into continuous fiber, distributing point loads across a substantial material mass. Hollow aluminum concentrates fastener stress on thin walls, creating localized failure risk under dynamic loads.
According to a research synthesis derived from code, standards, and evaluation-report sources, evaluated Alumawood patio covers are treated as roof and patio-cover structures with specified uniform live-load, snow-load, and wind-load requirements, not as swing-set support structures. Manufacturers designed these systems to handle distributed overhead weight, not the concentrated, repetitive pulling forces a swing generates.
This structural classification sets the stage for understanding whether the pergola can handle a swing’s actual loads.
Can an Alumawood Pergola Support the Weight of a Swing?
A standard Alumawood pergola cannot reliably support the weight of a swing without engineering modifications. The subsections below explain beam load limits, dynamic force multipliers, and how rider weight compounds the problem.
How Much Weight Can a Standard Alumawood Pergola Beam Hold?
A standard Alumawood pergola beam holds only the load it was engineered for: static roof weight, moderate wind, and code-minimum live loads spread uniformly across the structure. These hollow aluminum extrusions distribute weight across their full span, not at a single concentrated attachment point. A swing focuses hundreds of pounds of force on one narrow section of beam, a loading scenario Alumawood was never designed to handle.
This mismatch between distributed-load engineering and point-load demand is the core reason most Alumawood beams fail when used as swing supports. Without structural reinforcement, the beam wall can deform, crack, or pull away from its fasteners under concentrated stress.
What Dynamic Forces Does a Swinging Motion Add?

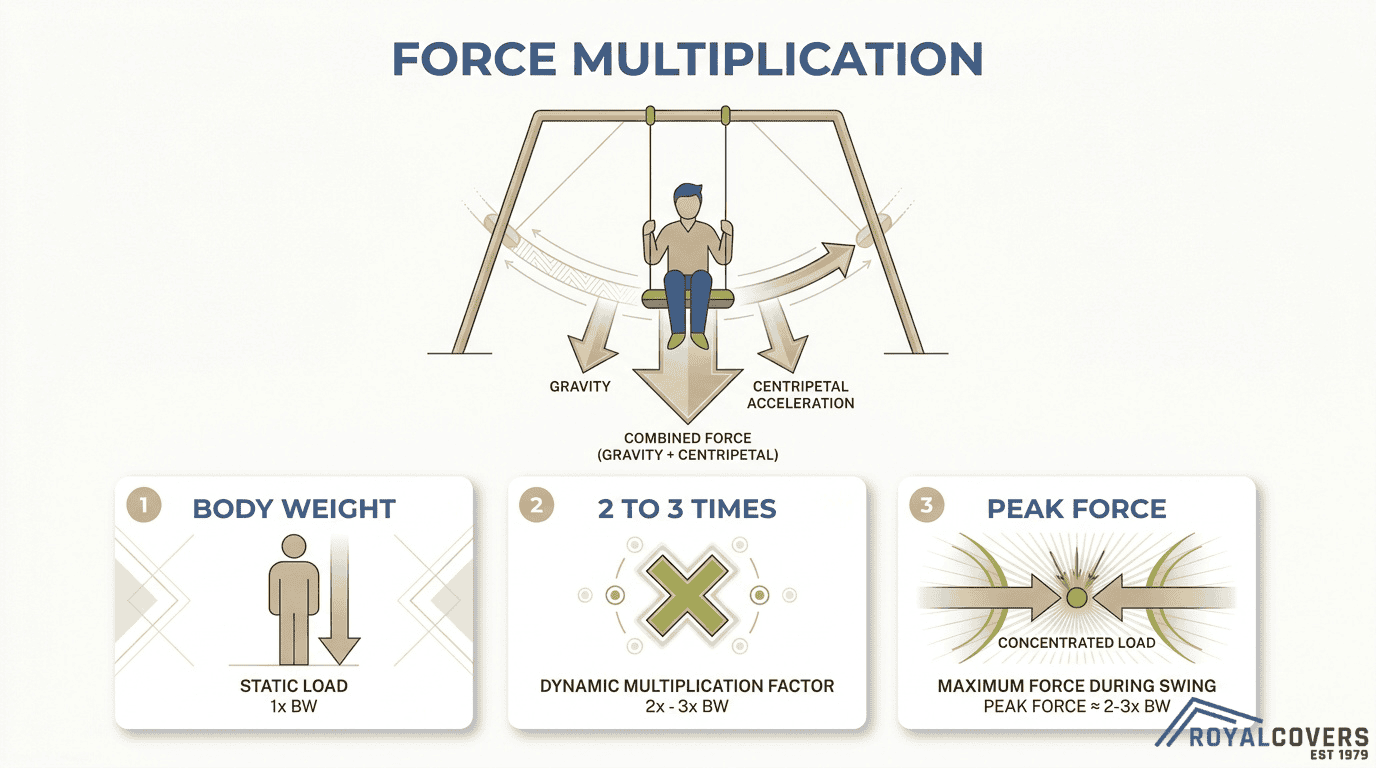

Swinging motion adds dynamic forces that multiply the effective load far beyond a rider’s static body weight. At the lowest point of each arc, centripetal acceleration combines with gravity to produce peak forces roughly two to three times the rider’s weight. Each back-and-forth cycle also generates lateral and torsional loads that standard Alumawood connections are not braced to resist.
Unlike a stationary load, these forces are repetitive and oscillating, which accelerates material fatigue in hollow aluminum profiles. Even a swing that seems gentle produces thousands of load cycles per session, progressively stressing beams and fastener holes in ways that uniform roof loads never would.
How Does Rider Weight Affect the Load on the Structure?
Rider weight affects the load on the structure by serving as the base variable that dynamic forces multiply. A 150-pound adult generates peak downward forces of 300 to 450 pounds at the swing’s lowest point, concentrated at a single attachment. A heavier rider or two passengers amplify those figures proportionally.
According to an ICC Evaluation Service report, the minimum uniform live load for patio covers is just 10 psf. That rating assumes weight spread evenly across the entire roof surface, not channeled through one bolt hole. Even a child’s weight, once multiplied by swing dynamics, can exceed what a small beam section was rated to carry.
Factoring in rider weight alongside dynamic multipliers reveals why professional engineering assessment is essential before any swing attachment is considered.
Why Is Hanging a Swing on Alumawood Risky Without Reinforcement?
Hanging a swing on Alumawood is risky without reinforcement because hollow aluminum beams face fatigue stress, fastener pull-through, and compounded wind loads they were never engineered to handle. The following subsections break down each failure mode.
How Does Repetitive Swinging Stress Hollow Aluminum Beams?
Repetitive swinging stresses hollow aluminum beams through cyclic fatigue, a process where repeated loading and unloading gradually weakens the metal at stress concentration points. Each swing arc applies a dynamic bending force that reverses direction, creating micro-level strain on the beam walls. A 1981 Transportation Research Board study found that at 471,000 cycles of loading, fatigue cracks had propagated far enough to completely sever girder flanges at five different sections. Alumawood beams, designed for static roof loads rather than oscillating forces, lack the wall thickness to resist this progressive cracking. Even modest daily use accumulates thousands of load cycles over a single season, making fatigue failure a realistic long-term concern for any unmodified structure.
What Happens When Fasteners Pull Through Thin Aluminum Walls?
Fasteners pull through thin aluminum walls when concentrated point loads exceed the bearing strength of the surrounding material. A swing attachment bolt creates stress at a small contact area on a hollow profile that typically measures fractions of an inch in wall thickness. As dynamic swinging forces repeatedly load and unload that contact point, the aluminum deforms, elongating the bolt hole. Once the hole enlarges beyond the fastener head’s footprint, the bolt tears through the wall entirely. This failure mode can occur suddenly and without visible warning from the ground. Unlike solid wood, which distributes fastener loads across dense grain fibers, hollow aluminum offers no internal material to resist progressive pull-through under cyclic stress.
Can Wind and Swing Motion Together Cause Structural Failure?
Yes, wind and swing motion together can cause structural failure by combining two dynamic loads that amplify each other. The American Society of Civil Engineers publishes location-specific wind design parameters through its ASCE Hazard Tool, reflecting how seriously building codes treat wind as a structural force. When a suspended swing already oscillates under rider-generated momentum, a crosswind gust adds lateral force the beam was never designed to resist simultaneously. These overlapping loads create multi-directional stress on fastener points and beam walls. For most homeowners, this combined loading scenario represents the least predictable and most dangerous condition, since it can push an already fatigued connection past its failure threshold without warning.
Understanding these risks clarifies why proper reinforcement methods deserve careful evaluation.
What Types of Swings Do Homeowners Try to Hang on Pergolas?
The types of swings homeowners try to hang on pergolas range from stationary seating to active play equipment. Each type introduces different weight, motion, and mounting demands.
Porch Swings
Porch swings are wide, bench-style seats suspended by chains or ropes from two overhead mounting points. They typically weigh 40 to 80 pounds before riders sit down, and most accommodate two to three adults. The swinging arc on a porch swing is relatively shallow, producing a gentle back-and-forth glide rather than a high pendulum motion. This lower arc reduces peak dynamic forces compared to free-swinging seats, but the combined static load of the swing plus multiple adults can still exceed 400 to 600 pounds concentrated on just two attachment points. That concentrated weight is the core concern on hollow aluminum beams not rated for point loads.
Single-Seat Rope or Chain Swings
Single-seat rope or chain swings are individual seats hung from a single overhead beam using rope, chain, or a combination of both. These swings encourage full-arc pendulum motion, which multiplies the rider’s static weight into significantly higher dynamic forces at the peak of each swing. A 150-pound adult swinging at moderate height can generate instantaneous loads exceeding two to three times their body weight at the lowest point of the arc. The attachment hardware typically concentrates all of this force on one narrow beam section. For structures designed to carry distributed roof loads rather than repetitive point-load impacts, this swing type creates a serious mismatch between intended use and structural capacity.
Hanging Egg Chairs
Hanging egg chairs are enclosed, pod-shaped seats suspended from a single overhead anchor point. They are popular for their modern aesthetic and comfortable cocoon design. Most egg chairs weigh 30 to 50 pounds and support one adult, placing the total hanging load between 180 and 300 pounds at a single connection. Although egg chairs produce less swinging arc than traditional swings, occupants still shift, bounce, and rotate inside the chair. These micro-movements generate repetitive lateral and vertical forces on the anchor point. A single concentrated load combined with constant low-level motion can stress a hollow aluminum beam in ways that uniform roof loads never replicate.
Children’s Swing Sets
Children’s swing sets are play structures featuring one or more seats designed for active, high-arc swinging. According to the U.S. Consumer Product Safety Commission, about 50,000 children visit U.S. hospital emergency rooms each year due to injuries on home playground equipment. Children swing aggressively, reaching high arcs that produce the largest dynamic force multipliers of any swing type. The repetitive, high-energy loading cycles accumulate structural fatigue rapidly, especially in materials not engineered for oscillating point loads. Among all swing types homeowners attempt to mount, children’s swing sets pose the greatest structural risk to an Alumawood pergola.
Understanding which swing type is involved directly shapes the safety analysis for any pergola installation.
How Does Each Swing Type Change the Safety Equation?
Each swing type changes the safety equation by producing different load profiles, motion patterns, and stress concentrations on Alumawood beams. The subsections below compare stationary porch swings, hanging egg chairs, and children’s swings.
Is a Stationary Porch Swing Safer Than a Free-Swinging Seat?
A stationary porch swing is safer than a free-swinging seat in most scenarios because its pendulum arc stays shorter and more controlled. Porch swings generate primarily vertical, low-amplitude loads, while free-swinging seats produce larger horizontal force components that increase bending stress on attachment points. Stiffness alone does not determine safety; as the National Lumber Grades Authority clarifies, Modulus of Elasticity measures rigidity, not the strength or safety of a material. The same principle applies to hollow aluminum profiles. A porch swing’s reduced motion radius lowers cyclic fatigue risk, though even controlled swinging still concentrates force on beams never designed for point loads.
Does a Hanging Egg Chair Put Less Stress on Alumawood?
A hanging egg chair puts less dynamic stress on Alumawood than traditional swings because occupants sit in a semi-enclosed cradle with minimal swing arc. Most movement involves gentle rotation or rocking rather than full pendulum oscillation, which limits horizontal force transfer to the beam. However, egg chairs still concentrate a single occupant’s full body weight, often 150 to 250 pounds, at one suspension point. That sustained point load differs from the distributed live loads Alumawood is engineered to handle. For homeowners set on hanging an egg chair, reinforcing the connection or using a freestanding frame remains the safer approach.
Why Are Children’s Swings the Highest Risk on Alumawood?
Children’s swings are the highest risk on Alumawood because they generate the largest dynamic force multipliers and the most unpredictable motion cycles. According to the U.S. Consumer Product Safety Commission, approximately 50,000 children visit U.S. emergency rooms annually due to injuries on home playground equipment, with about 80 percent of those injuries caused by falls. High-arc swinging can multiply a child’s static weight by two to three times at peak motion, hammering the same attachment point thousands of times per season. ASTM F1148 covers safety requirements for home playground equipment used by children 18 months through 10 years, yet no standard addresses mounting playground equipment on residential patio cover structures.
Royal Covers can help homeowners explore engineered alternatives that account for these swing-specific forces from the design phase.
What Reinforcement Methods Could Make a Swing Safer?
Reinforcement methods that could make a swing safer include steel support brackets, freestanding swing frames, and dedicated swing beams. Each approach addresses the core problem differently.
Can a Steel Support Bracket Distribute Load Across Multiple Beams?
Yes, a steel support bracket can distribute load across multiple beams by spreading the point force of a swing attachment over a wider area. A properly engineered steel bracket bolts through several Alumawood beams simultaneously, reducing the concentrated stress on any single hollow aluminum member. However, even with load distribution, the underlying beams must have sufficient capacity to handle dynamic swing forces collectively. A structural engineer should calculate whether the combined beam strength, fastener pull-through resistance, and connection integrity meet the required load demands. Steel brackets are not a universal fix; they are one component of a professionally designed reinforcement plan.
Does Adding a Freestanding Swing Frame Beside the Pergola Work?
Yes, adding a freestanding swing frame beside the pergola works as one of the safest alternatives. A freestanding frame is an independent, ground-anchored steel or wood structure rated specifically for swing loads. It eliminates all stress transfer to the Alumawood pergola because the two structures share no structural connection. This approach preserves the pergola’s warranty and original load ratings while still allowing homeowners to enjoy a swing within the same outdoor space. For most homeowners who want swing functionality without risking their existing shade structure, a freestanding frame is the most practical solution since it bypasses every limitation inherent in hollow aluminum construction.
Should You Install a Dedicated Swing Beam Inside the Pergola?
You should install a dedicated swing beam inside the pergola only if a licensed structural engineer designs the system. A dedicated beam, typically solid steel or engineered lumber, spans between the pergola’s main posts or independent footings, creating a load path that bypasses the hollow Alumawood roof members entirely. According to the International Code Council, patio covers must sustain all dead loads plus a minimum vertical live load of 10 pounds per square foot; swing forces exceed this threshold at concentrated attachment points. The beam’s connections, post capacity, and footing design all require professional verification. Without engineering review, even a dedicated beam can transfer dangerous forces to components not designed for them.
With reinforcement strategies clarified, understanding warranty implications protects both investment and safety.
What Do Manufacturer Warranties Say About Hanging Swings?
Manufacturer warranties for Alumawood products generally cover material defects and finish performance, not structural modifications like swing attachment. Understanding warranty terms and published load ratings clarifies the risks involved.
Does Attaching a Swing Void an Alumawood Warranty?
Attaching a swing to an Alumawood pergola can void the manufacturer warranty. Standard Alumawood limited lifetime warranties cover defects in material and factory-applied finishes under normal, intended use. Hanging a swing introduces concentrated dynamic loads the product was never designed to handle, which falls outside normal use conditions.
Most warranty documents include exclusions for:
- Structural modifications not approved by the manufacturer
- Damage caused by loads exceeding published design specifications
- Alterations to original components, including drilling new attachment points
Because swing attachment fundamentally changes how forces act on the structure, manufacturers have strong grounds to deny claims for beam deformation, fastener failure, or finish cracking that result from swinging loads. Homeowners should review their specific warranty language and contact the manufacturer directly before making any modifications.
What Load Ratings Do Alumawood Manufacturers Publish?
Alumawood manufacturers publish load ratings based on uniform live-load requirements for patio covers, not point-load capacities for hanging objects. According to the International Code Council, patio covers must sustain all dead loads plus a minimum vertical live load of 10 pounds per square foot. This rating assumes weight distributed evenly across the entire roof surface.
A swing concentrates its full load on one or two attachment points, creating stress patterns these ratings do not address. The published 10 psf live-load figure accounts for light snow, minor debris, or maintenance access; it was never intended to represent the capacity for dynamic, oscillating point loads. No standard Alumawood evaluation report includes swing-load testing or approval.
Recognizing these warranty and rating limitations helps frame the structural inspection steps covered next.
How Can You Tell If Your Existing Pergola Has Been Compromised?
You can tell if your existing pergola has been compromised by inspecting for visible beam distortion, fastener damage, and unusual movement under load. The following subsections cover visual warning signs and when to bring in a professional.
What Visual Signs Indicate Beam Stress or Fastener Damage?
Visual signs that indicate beam stress or fastener damage include bowing or sagging along horizontal beams, elongated or widened fastener holes, cracked paint or finish lines radiating from connection points, and visible gaps between beams and mounting brackets. Aluminum profiles under repeated stress may also show subtle buckling or rippling along their flat surfaces, a deformation that is easy to miss at first glance.
Look for these specific indicators during a hands-on check:
- Beams that deflect noticeably when you press upward with moderate hand pressure.
- Screws or bolts that spin freely without tightening, suggesting the surrounding material has stripped.
- Rust stains or corrosion rings around steel fasteners embedded in aluminum.
- Misalignment between post tops and beam undersides, indicating the joint has shifted.
Any single sign warrants further evaluation; multiple signs together suggest the structure’s load path has already been weakened. Even cosmetic cracking near a fastener point can signal that cyclic forces, such as those from a swing, have begun to fatigue the material.
When Should You Call a Structural Professional for Inspection?
You should call a structural professional for inspection whenever you observe any of the visual warning signs above, plan to add a hanging load like a swing, or notice movement or sound (creaking, popping) during wind events. A licensed structural engineer can assess whether the aluminum profiles, connections, and footings still meet their original design capacity.
The American Wood Council (AWC) employs engineers, technologists, and building code experts who develop standards on structural wood products for design professionals and building officials, underscoring that proper structural evaluation requires specialized credentials, not a general visual check. The same principle applies to aluminum patio structures: only a qualified professional can determine whether existing members can safely accept new dynamic loads.
For most homeowners, the cost of a structural inspection is far less than the liability and repair expense of a failure. Understanding your pergola’s current condition sets the foundation for deciding whether reinforcement or a dedicated swing structure is the better path forward.
How Should You Plan a Pergola That Safely Supports a Swing?
You should plan a pergola that safely supports a swing by working with a licensed contractor who can engineer the structure specifically for dynamic swing loads from the start. The subsections below cover custom-engineered Alumawood solutions and key safety takeaways.
Can a Custom-Engineered Alumawood Pergola From Royal Covers Be Designed for Swing Loads?
Yes, a custom-engineered Alumawood pergola from Royal Covers can be designed for swing loads when the structure is purpose-built with reinforced beams, upgraded footings, and proper load calculations. Standard patio covers are not engineered for this use. According to the International Code Council, patio covers must sustain all dead loads plus a minimum vertical live load of 10 pounds per square foot (0.48 kN/m²), a baseline intended for static roof loads rather than the concentrated, repetitive forces a swing generates.
Royal Covers specializes in custom designs that go beyond standard specifications. With over 45 years of experience building shade structures for Arizona’s desert climate, Royal Covers handles permitting, HOA approvals, and structural engineering to ensure every installation meets or exceeds local code requirements. Planning swing support into the original design is far safer than retrofitting an existing structure.
What Are the Key Takeaways About Attaching a Swing to an Alumawood Pergola Safely?
The key takeaways about attaching a swing to an Alumawood pergola safely center on one principle: never assume a standard pergola can handle swing forces without engineering verification. The most important lessons from this topic include:
- Standard Alumawood pergolas are designed for static roof loads, not the dynamic, concentrated stress of swinging motion.
- Hollow aluminum beams risk fatigue cracking and fastener pull-through under repetitive cyclic loads.
- Rider weight, swing type, and wind exposure all compound the forces acting on the structure.
- Reinforcement options such as steel brackets, dedicated swing beams, or freestanding frames each carry different trade-offs.
- Manufacturer warranties may be voided by unauthorized swing attachments.
- A purpose-built pergola engineered for swing loads from the design phase is the safest path forward.
