Alumawood pergola gutters are aluminum drainage channels engineered for patio cover structures, collecting rainwater and routing it away from foundations, posts, and living areas. These systems typically cost between $150 and $1,800 installed, depending on pergola size and gutter profile.
This guide covers gutter purpose and structural differences from standard roof gutters, size-based pricing and the factors that influence total cost, gutter type selection for Alumawood compatibility, the step-by-step installation process, maintenance and monsoon preparedness, and when to work with a professional installer.
Alumawood pergola gutters solve water pooling, foundation erosion, and splash-back staining that occur when solid roof panels shed rain without controlled drainage. They differ from standard roof gutters in mounting method and scale, fastening to aluminum beams rather than wood fascia and handling shallower roof slopes as low as 0.5 inches per foot.
Costs range from $150 to $450 for small pergolas (20 to 30 linear feet of gutter), $400 to $900 for medium structures, and $800 to $1,800 for large installations requiring 60 to 100 or more linear feet. Gutter length, downspout quantity, Arizona labor rates, and add-ons like gutter guards each shift the final price.
Four gutter profiles suit Alumawood pergolas: integrated channels for a seamless factory look, K-style for high capacity and easy mounting, half-round for traditional aesthetics, and box gutters for maximum volume on wide structures. Installation follows six stages, from structural assessment through slope planning, bracket mounting, section attachment, downspout routing, and flow testing.
Arizona’s monsoon season compresses most annual rainfall into brief, violent storms that can overwhelm undersized systems. Larger profiles, additional downspouts, and pre-season inspections are essential for desert climates. Routine cleaning at least twice per year prevents corrosion and mounting failure that lead to costly structural damage.
What Are Alumawood Pergola Gutters and Why Do They Matter?
Alumawood pergola gutters are drainage channels designed specifically for aluminum patio structures, collecting and redirecting rainwater away from living areas and foundations. The sections below cover the problems these gutters solve and how they differ from standard roof gutters.
What Problems Do Gutters Solve on an Alumawood Pergola?
Gutters solve water damage, foundation erosion, and uncontrolled runoff problems on an Alumawood pergola. Without a gutter system, rainwater sheets off solid roof panels and pools near post footings, which can undermine concrete bases over time. According to the Building America Solution Center (U.S. Department of Energy), gutters and downspouts should be installed to direct water away from foundations.
Properly channeled drainage also prevents these common issues:
- Splash-back staining on exterior walls and adjacent surfaces
- Soil erosion in landscaped beds beneath the pergola
- Standing water that attracts mosquitoes and degrades paver patios
- Overflow that saturates the ground near the home’s perimeter
For homeowners with solid Alumawood covers, gutters are not optional accessories; they are functional necessities that protect the investment in both the structure and the surrounding property.
How Do Alumawood Pergola Gutters Differ From Standard Roof Gutters?
Alumawood pergola gutters differ from standard roof gutters in mounting method, scale, and material compatibility. Standard roof gutters attach to fascia boards on wood-framed homes using spike-and-ferrule or hidden hanger systems. Pergola gutters, by contrast, must fasten directly to aluminum beams and fascia trim without penetrating the structural frame in ways that void the cover’s warranty.
Alumawood structures also carry lower roof slopes. According to the IAPMO Uniform Evaluation Service, solid patio covers require a minimum roof slope of just 0.5 inches per foot for insulated panels, which is significantly shallower than most residential rooflines. This reduced pitch demands precise gutter positioning to maintain adequate drainage velocity.
Additionally, pergola gutters are typically shorter in total run length and handle smaller catchment areas, so sizing requirements differ. Standard homes may need 5- or 6-inch profiles, while many pergola installations perform well with 4- or 5-inch channels matched to the structure’s footprint.
Understanding these functional distinctions helps ensure the right gutter system is selected, which directly influences both installation cost and long-term performance.
How Much Do Alumawood Pergola Gutters Cost?
Alumawood pergola gutter costs depend on the size of the structure. Below, each subsection breaks down pricing for small, medium, and large pergolas based on gutter length, materials, and labor.
How Much Do Alumawood Pergola Gutters Cost for a Small Pergola?
Alumawood pergola gutters for a small pergola typically cost between $150 and $450 installed. A small pergola, generally in the 10-by-10-foot to 10-by-12-foot range, requires roughly 20 to 30 linear feet of aluminum gutter. Material costs for aluminum gutter sections, end caps, downspouts, and sealant usually fall between $3 and $6 per linear foot.
Labor represents the larger share of the total. According to 2023 U.S. Bureau of Labor Statistics data, construction workers in the Phoenix-Mesa-Scottsdale metro area earn an hourly mean wage of $22.65, which directly influences installation pricing. Most installers complete a small pergola gutter job in two to four hours, keeping labor costs manageable relative to the material expense.
How Much Do Alumawood Pergola Gutters Cost for a Medium Pergola?
Alumawood pergola gutters for a medium pergola generally cost between $400 and $900 installed. Medium pergolas, spanning roughly 12-by-16 feet to 14-by-20 feet, require approximately 35 to 55 linear feet of gutter. Longer runs often call for additional downspouts and mid-span connectors, which add to the material total.
The added complexity of a medium structure matters more than many homeowners expect. Proper slope must be maintained across longer gutter sections, and a second downspout is frequently needed to prevent overflow during heavy rainfall. These factors push both material and labor costs higher than a simple per-foot calculation might suggest.
How Much Do Alumawood Pergola Gutters Cost for a Large Pergola?
Alumawood pergola gutters for a large pergola typically cost between $800 and $1,800 installed. Large pergolas, sized around 16-by-20 feet or bigger, can require 60 to 100 or more linear feet of gutter with multiple downspouts, corners, and connection points.
Structures at this scale often need wider gutter profiles to handle higher water volume. According to the Whole Building Design Guide, gutters come in 4-, 5-, and 6-inch sizes, and larger pergolas frequently require the 5- or 6-inch options to manage roof drainage effectively. Factoring in additional brackets, multi-directional downspout routing, and extended labor time, large pergola gutter projects demand careful planning to balance cost with performance.
Understanding these size-based cost ranges helps when evaluating the specific factors that influence your final price.

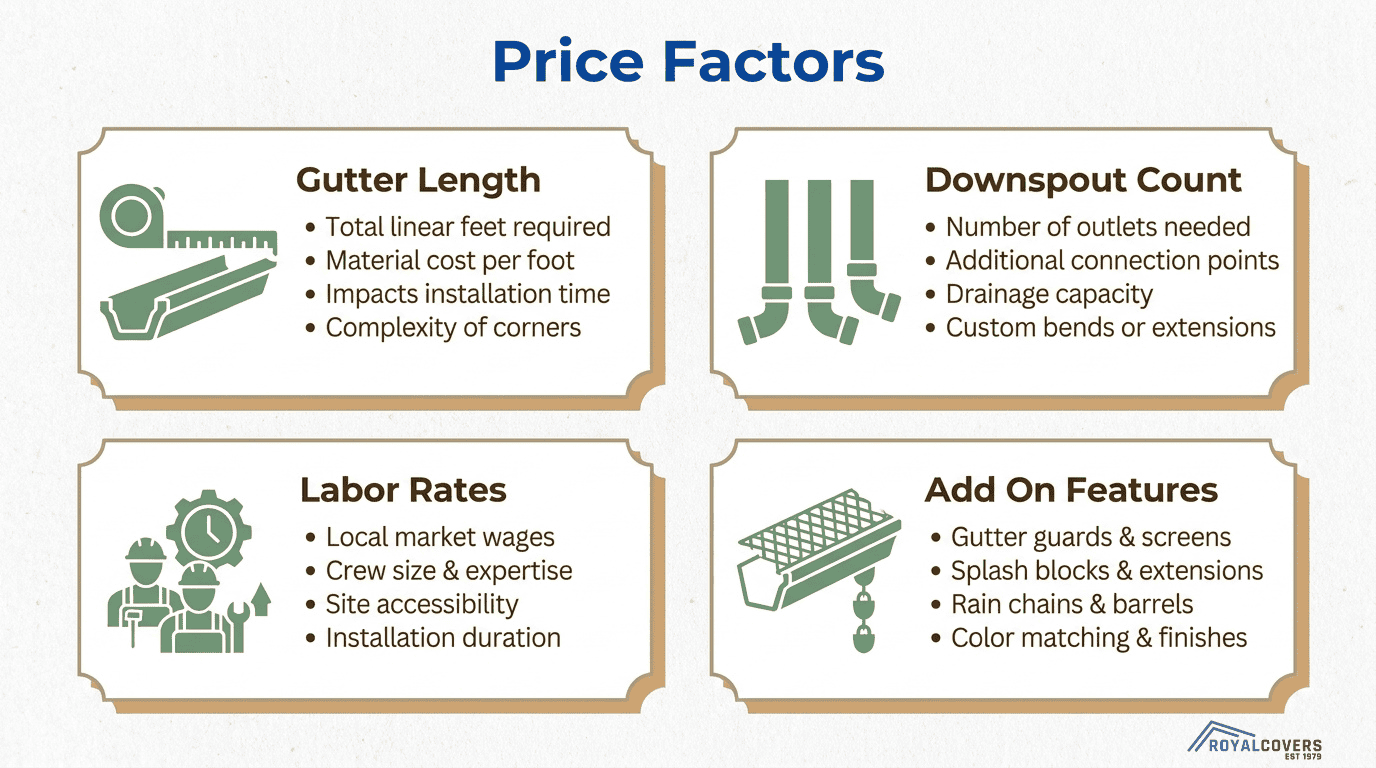

What Factors Influence the Total Price of Pergola Gutters?
The total price of pergola gutters depends on gutter length, downspout quantity, labor rates, and optional add-ons. Each factor shifts the final estimate in measurable ways, covered below.
How Does Gutter Length and Pergola Size Affect Cost?
Gutter length and pergola size affect cost because longer runs require more material, additional seams, and extra mounting hardware. A 10-foot pergola needs a single gutter section, while a 20-foot structure may require spliced sections with sealed joints. Larger pergolas also demand wider gutters to handle increased roof area and water volume. According to the Sheet Metal and Air Conditioning Contractors’ National Association, proper gutter sizing depends on local rainfall intensity, meaning oversized pergolas in heavy-rain zones may need 5- or 6-inch gutters instead of standard 4-inch profiles. Material waste from custom cuts adds to the total as well. For most homeowners, pergola footprint is the single largest variable in gutter pricing.
How Does Downspout Placement and Quantity Affect Cost?
Downspout placement and quantity affect cost by adding material, connectors, and routing complexity to each drainage point. Every downspout requires an outlet tube, elbows, brackets, and a connection to the gutter trough. Pergolas with multiple low points or obstructed corners may need two or three downspouts instead of one, increasing both parts and labor time. Routing downspouts around posts, walls, or landscaping introduces additional elbows and extension pieces. The Building America Solution Center, a U.S. Department of Energy resource, recommends installing gutters and downspouts to direct water away from the foundation. Placement decisions that achieve proper drainage while minimizing fittings keep costs lower without sacrificing performance.
How Does Labor and Professional Installation Affect Cost?
Labor and professional installation affect cost through hourly wages, crew time, and the complexity of the pergola structure. According to the Federal Reserve Bank of St. Louis, average hourly earnings for construction employees in Arizona reached $38.40 per hour as of April 2026. Factors that increase labor hours include difficult access points, multi-story mounting, angled roof slopes, and custom bracket fabrication for Alumawood beams. Professional installers also account for proper slope alignment, leak testing, and code-compliant drainage connections. While labor typically represents a significant share of the total gutter project cost, experienced crews reduce the risk of callbacks and water damage that cheaper, rushed installations often produce.
How Do Add-Ons Like Gutter Guards or Extensions Affect Cost?
Add-ons like gutter guards or extensions affect cost by introducing supplemental materials and extra installation steps. Common pergola gutter add-ons include:
- Gutter guards or leaf screens that prevent debris accumulation
- Downspout extensions that route water further from the foundation
- Splash blocks or underground drain adapters for controlled discharge
- Rain chains used as decorative downspout alternatives
- Heat tape for freeze-prone climates
Each accessory adds per-linear-foot or per-unit pricing on top of the base gutter system. Gutter guards, in particular, are worth the upfront investment because they significantly reduce long-term cleaning frequency and help prevent clogs during intense storm events. With add-on decisions finalized, the next step is choosing the right gutter style for your Alumawood pergola.

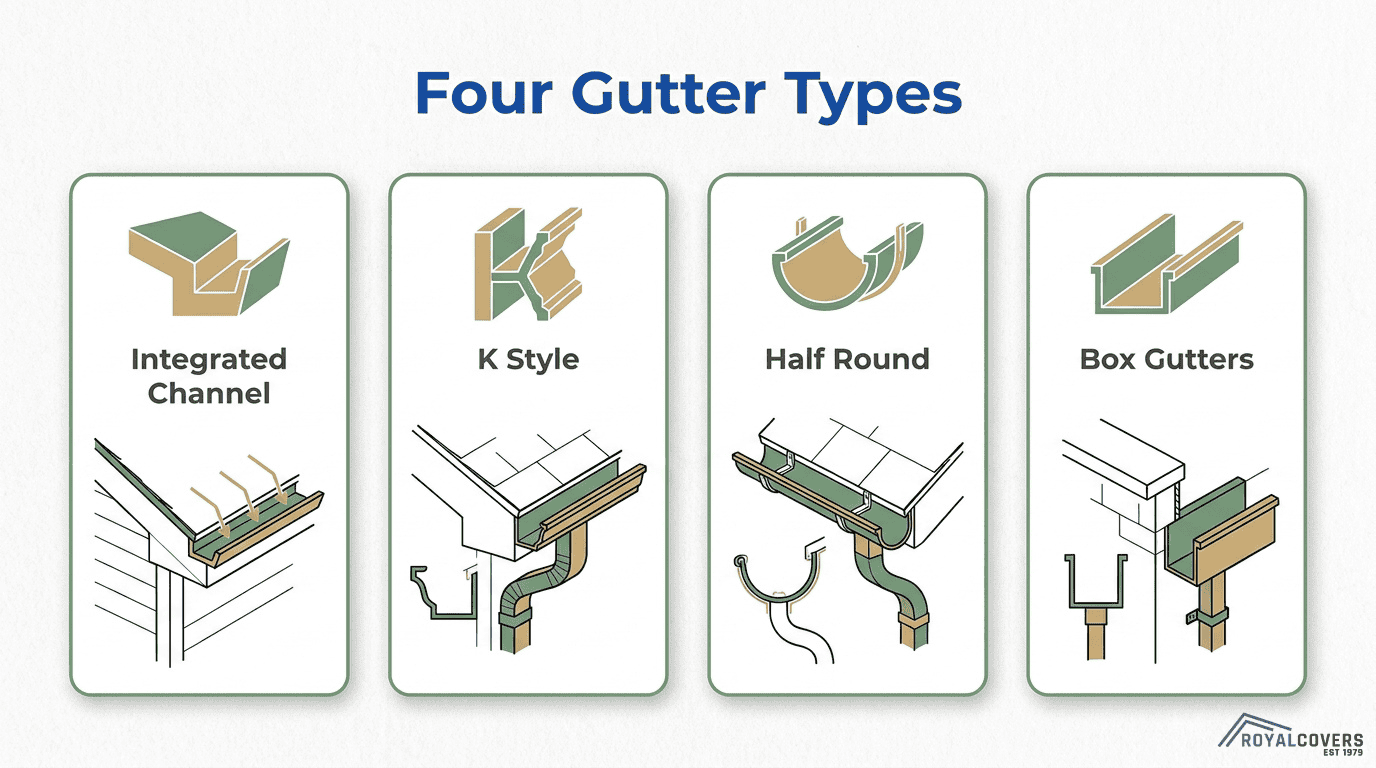

What Types of Gutters Work Best on Alumawood Pergolas?
The types of gutters that work best on Alumawood pergolas include integrated channel gutters, K-style gutters, half-round gutters, and box gutters. Each profile offers distinct advantages in capacity, aesthetics, and compatibility with aluminum patio cover framing.
Integrated Channel Gutters
Integrated channel gutters are built directly into the Alumawood pergola’s fascia or beam structure rather than mounted as separate attachments. This design creates a seamless, factory-finished appearance that preserves the clean lines of the patio cover. Because the channel is part of the structure itself, there are no visible brackets or hanging hardware. For homeowners who prioritize a sleek, unified look, integrated channels are often the strongest choice since they eliminate the gap between gutter and fascia where debris typically accumulates.
K-Style Gutters
K-style gutters feature a flat back and a decorative front profile that resembles crown molding. According to the Whole Building Design Guide, gutters come in 4-, 5-, and 6-inch sizes in U- or K-shaped profiles, with the K shape developed in the 1950s. The flat back panel mounts flush against Alumawood fascia boards, making attachment straightforward. K-style profiles also hold more water volume per linear foot than half-round gutters of the same width, which matters during intense rainfall events. Their wide availability in aluminum makes color-matching to Alumawood finishes simple.
Half-Round Gutters
Half-round gutters are U-shaped troughs that offer a traditional, rounded aesthetic. Their smooth interior allows water and debris to flow with less resistance than angular profiles, reducing the likelihood of clogs. However, half-round gutters require external mounting brackets that wrap beneath the trough, which can complicate attachment to Alumawood beams. They also carry slightly less volume than a same-width K-style gutter. For pergolas where architectural style takes priority over maximum capacity, half-round profiles deliver a classic appearance that pairs well with Spanish or Mediterranean-inspired outdoor designs.
Box Gutters
Box gutters are rectangular, high-capacity troughs designed to handle large volumes of runoff. The International Institute of Building Enclosure Consultants defines a box gutter as a sloped trough adjacent to the roof that collects and drains roof water through one or more downspouts. Their generous depth makes them well suited for wide Alumawood pergolas that collect significant rainfall across a broad surface area. Installation typically requires custom fabrication, which adds cost but ensures a precise fit. For pergolas exceeding 20 feet in length or located in high-rainfall zones, box gutters provide the drainage margin that smaller profiles cannot match.
With gutter type selected, the next step is understanding the installation process itself.

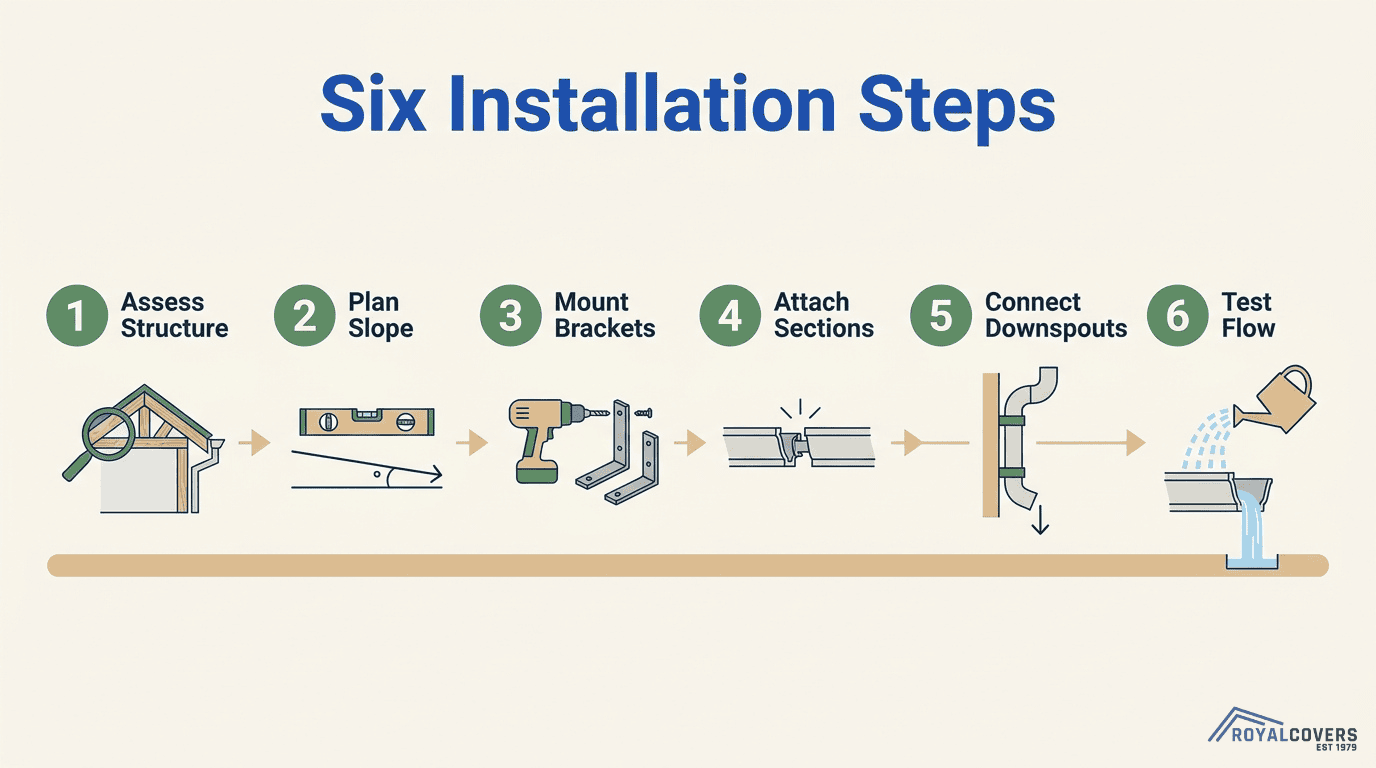

How Are Alumawood Pergola Gutters Installed Step by Step?
Alumawood pergola gutters are installed step by step through a six-stage process: assessment and measurement, slope planning, bracket mounting, gutter cutting and attachment, downspout connection, and flow testing.
How Is the Pergola Assessed and Measured Before Installation?
The pergola is assessed and measured before installation by inspecting the structure’s condition and recording precise dimensions of every beam and fascia edge. Installers check for level variations across the Alumawood beams, note the location of existing posts, and identify any obstructions like lighting or fans. Accurate measurements of each run determine how many gutter sections, connectors, end caps, and downspout outlets the project requires. Skipping this step often leads to misaligned joints and pooling water, so taking extra time here saves costly rework later.
How Is the Gutter Slope and Drainage Path Planned?
The gutter slope and drainage path are planned by establishing a consistent pitch toward one or more downspout locations. According to the IAPMO Uniform Evaluation Service, solid patio covers require a minimum roof slope of 0.5 inches per foot for insulated panels and 0.375 inches per foot for roll-formed panels. Gutter slope should complement this roof pitch. Installers mark a chalk line along the fascia, dropping roughly 1/4 inch for every 10 feet of gutter run. The drainage path should route downspouts toward landscape gravel, dry wells, or approved storm drainage rather than toward foundations or walkways.
How Are Gutter Brackets Mounted to Alumawood Beams?
Gutter brackets are mounted to Alumawood beams by fastening them directly into the structural aluminum fascia or rafter tails at regular intervals. Brackets typically sit 24 to 36 inches apart, with closer spacing in areas expecting heavy water volume. Self-tapping screws designed for aluminum provide a secure hold without cracking or warping the Alumawood material. Each bracket must follow the chalk line established during slope planning. Proper bracket alignment is the single most important factor in long-term gutter performance; even one misplaced bracket can create a low spot that traps debris and standing water.
How Are Gutter Sections Cut and Attached to the Pergola?
Gutter sections are cut and attached to the pergola by measuring each run, marking the cut line, and trimming with aviation snips or a fine-tooth miter saw. Key steps include:
- Cutting each section slightly long, then trimming for a snug fit against end caps or corner miters.
- Applying gutter sealant at every joint and end cap to prevent leaks.
- Snapping the gutter channel into the pre-mounted brackets along the full run.
- Securing each section to the brackets with clip fasteners or screws.
Aluminum gutter sections pair naturally with the Alumawood fascia, maintaining a clean, color-matched appearance.
How Are Downspouts Connected and Routed to Drainage?
Downspouts are connected and routed to drainage by attaching an outlet fitting at the pre-marked low point of each gutter run, then joining vertical downspout sections with elbows. The Building America Solution Center from the U.S. Department of Energy specifies that gutters and downspouts should direct water away from the foundation. Each downspout should extend at least four feet from the pergola’s base, terminating at a splash block, drainage swale, or underground pipe tied to an approved storm system. Securing downspout straps to Alumawood posts at 6-foot intervals keeps everything rigid and rattle-free during wind events.
How Is the Completed Gutter System Tested for Proper Flow?
The completed gutter system is tested for proper flow by running water from a garden hose at the highest point of each gutter run and observing the results. Installers watch for:
- Steady, uninterrupted flow toward each downspout with no pooling.
- Dry joints and end caps with zero visible drips.
- Downspout discharge landing at the intended drainage point.
- Brackets holding firm with no sagging under water weight.
Any pooling indicates a low spot that needs bracket adjustment. Joints that drip require additional sealant. Testing before cleanup ensures every correction happens while tools and ladders are still on site, which is the most efficient approach to a leak-free system.
With installation complete, understanding whether this project suits a DIY approach helps determine the best path forward.
Can You Install Alumawood Pergola Gutters as a DIY Project?
Yes, you can install Alumawood pergola gutters as a DIY project if you have basic construction skills and the right safety equipment. The sections below cover required tools and skills, plus scenarios where hiring a professional is the better choice.
What Skills and Tools Are Needed for DIY Gutter Installation?
The skills and tools needed for DIY gutter installation include basic measuring and leveling ability, comfort working on a ladder, and familiarity with drilling into aluminum. You will also need a hacksaw or tin snips for cutting gutter sections, a drill with appropriate bits, a level, sealant for joints, and gutter hangers or brackets.
Safety is the most critical consideration. According to OSHA guidelines, you should keep the area around the bottom and top of the ladder clear of equipment, materials, and tools to prevent falls. Because aluminum conducts electricity, position ladders well away from power lines and live electrical wiring.
Properly setting the gutter slope requires precision; even a slight miscalculation can cause water to pool rather than drain. For homeowners who have hung shelves, mounted fixtures, and used a level confidently, a straightforward single-run gutter on a small pergola is achievable.
When Should You Hire a Professional Instead of DIY?
You should hire a professional instead of DIY when the project involves complex drainage routing, multi-directional slopes, or integration with existing downspout systems. Pergolas with irregular layouts or multiple corners demand precise fabrication that is difficult to execute without specialized experience.
Permit requirements also matter. Many municipalities require that drainage systems comply with local plumbing codes, and improper stormwater routing can create code violations. A licensed installer understands these requirements and ensures the finished system passes inspection.
From a practical standpoint, any mistake on an Alumawood structure risks cosmetic damage to the factory finish, which is costly to repair. If the pergola is tall, attached to a second-story wall, or located near electrical service lines, the safety risk alone justifies professional installation.
For most homeowners, the cost savings of DIY rarely outweigh the risk of improper slope, leaking joints, or voided warranties. Understanding gutter maintenance needs helps protect whichever installation approach you choose.
How Do You Maintain Gutters on an Alumawood Pergola?
You maintain gutters on an Alumawood pergola through regular cleaning and periodic inspections for damage. The sections below cover recommended cleaning frequency and warning signs that indicate repair or replacement.
How Often Should Alumawood Pergola Gutters Be Cleaned?
Alumawood pergola gutters should be cleaned at least twice per year, with additional cleanings after heavy storms. Schedule one session before monsoon season and another after it ends to remove accumulated dust, leaves, and debris.
According to the National Center for Healthy Housing, proper maintenance prevents gutters from corroding and pulling loose from their mountings. Desert environments deposit fine dust and sediment year-round, so a quick visual check each month helps catch buildup before it restricts flow. Basic cleaning supplies include:
- A bucket for collecting debris
- A gardening shovel or drain-clearing tool
- A pistol-grip hose nozzle for flushing channels
- A stable ladder positioned away from power lines
Consistent seasonal cleaning is the single most effective way to extend gutter lifespan on any aluminum pergola structure.
What Are Signs That Pergola Gutters Need Repair or Replacement?
The signs that pergola gutters need repair or replacement include visible sagging, water overflowing during rain, staining on the pergola posts, and loose mounting hardware. Each symptom points to a different underlying issue, from clogged downspouts to failed bracket connections.
As noted by the City of Ann Arbor’s stormwater management guide, blocked gutters cause water to overflow and collect around a structure, potentially leading to foundation problems. Watch specifically for:
- Water spilling over gutter edges during moderate rainfall
- Visible rust spots, cracks, or joint separations along gutter seams
- Gutters pulling away from Alumawood beams or fascia
- Pooling water beneath the pergola after storms have passed
- Downspouts that drip or leak at connection points
Addressing these signs early avoids costly structural damage and keeps the drainage system functioning through intense desert storms. Understanding gutter maintenance prepares homeowners to evaluate how monsoon conditions further affect these systems.
How Do Desert Monsoons Affect Alumawood Pergola Gutter Needs?
Desert monsoons affect Alumawood pergola gutter needs by demanding higher drainage capacity, stronger mounting, and more frequent maintenance than dry-season conditions require. The North American Monsoon delivers the majority of Arizona’s annual rainfall in short, violent bursts that can overwhelm undersized gutter systems within minutes.
According to the National Park Service, all but one-quarter inch of the Sonoran Desert’s more than twelve-inch average yearly rainfall arrives as either gentle winter rain or violent summer thunderstorms. This concentration means an Alumawood pergola gutter system must handle months of rainfall volume compressed into brief, intense storms rather than spread across the year. The National Integrated Drought Information System confirms that extreme rainfall events associated with the North American Monsoon are often localized, short-lived, and intense, producing heavy runoff.
These conditions create specific gutter requirements for Alumawood pergolas:
- Larger gutter profiles, such as 6-inch K-style or box gutters, prevent overflow during peak monsoon downpours.
- Additional downspouts reduce the distance water travels before exiting, lowering the risk of pooling and bracket stress.
- Pre-monsoon inspections between May and early June catch debris accumulation and loose fasteners before the season arrives.
- Post-storm cleanouts remove desert dust, leaf litter, and sediment that monsoon winds deposit in gutter channels.
Arizona’s monsoon season runs from June 15 through September 30, a period tracked by the University of Arizona Cooperative Extension using daily precipitation data from rain gauges statewide. Homeowners who treat gutter sizing as a year-round average calculation often discover their systems fail precisely when protection matters most. For desert climates, designing the gutter system around the worst-case storm intensity, not annual averages, is the single most important planning decision.
With monsoon demands clearly defined, working alongside a professional patio cover company ensures every detail is engineered correctly.
How Should You Approach Pergola Gutter Installation with a Professional Patio Cover Company?
You should approach pergola gutter installation by choosing a company that handles design, permitting, and drainage planning as a single coordinated service. The following sections cover Royal Covers’ capabilities and the key takeaways from this guide.
Can Royal Covers Help with Custom Alumawood Pergola Design and Installation?
Yes, Royal Covers can help with custom Alumawood pergola design and installation. Royal Covers specializes in Alumawood patio covers, Alumawood pergolas, solid and lattice covers, Equinox louvered roofs, and pergola cover installation. With over 45 years of experience in the Phoenix market, Royal Covers handles every phase of the project, from free design consultation and permit approvals to professional installation by full-time crews.
Pricing for patio covers starts at $25 per square foot for lattice pergolas and solid covers, while insulated roof pergolas can reach $40 per square foot. Structural aluminum posts start at $350 each, concrete footings at $400 each, and building permit packages at $1,000. Because gutter integration depends on roof slope, panel type, and drainage routing, having one company manage the entire build ensures the gutter system aligns with the structure from the start. That single-source accountability is what separates a lasting installation from a patchwork retrofit.
What Are the Key Takeaways About Alumawood Pergola Gutter Costs and Installation?
The key takeaways about Alumawood pergola gutter costs and installation center on three decisions: gutter type, proper slope, and professional versus DIY execution.
- Alumawood pergola gutters protect foundations by directing stormwater away from the structure, a requirement emphasized by the U.S. Department of Energy’s Building America Solution Center.
- Costs scale with pergola size, gutter profile, downspout count, and add-ons like gutter guards or splash extensions.
- K-style, half-round, box, and integrated channel gutters each suit different Alumawood configurations; sizing must match local rainfall intensity.
- Minimum roof slopes of 0.375 to 0.5 inches per foot are required for proper drainage on solid Alumawood panels.
- Arizona’s monsoon season produces intense, localized downpours that demand oversized gutters and routine maintenance.
- Regular cleaning prevents corrosion, mounting failure, and overflow damage.
For homeowners planning a new Alumawood pergola or upgrading an existing one, coordinating gutter installation with the original build eliminates compatibility issues and reduces long-term costs.
