An Alumawood pergola is a shade structure built from roll-formed aluminum panels with an embossed woodgrain finish that replicates the look of real wood while resisting termites, rot, and UV degradation. Choosing between DIY and professional installation depends on your construction skill level, budget, local code requirements, and tolerance for structural risk.
This guide covers Alumawood as a material, the full DIY build process, professional installation scope, cost comparisons, permitting and climate factors, common mistakes, and how to make the final decision.
Alumawood panels span up to 20 feet, require virtually no annual maintenance, and come in lattice or solid-panel configurations. That durability and low upkeep explain why homeowners increasingly choose Alumawood over wood species like cedar or redwood, which demand regular sealing and staining.
DIY installation follows a staged sequence: gathering specialized tools (chop saw, hammer drill, Forstner bit), preparing a level and square site using the 3-4-5 method, anchoring posts, attaching beams and rafters, and laying roof panels. Most first-time builders should budget a full weekend for a moderately sized cover.
Professional installation bundles site assessment, engineered footing design, code-compliant ledger attachment, and inspection scheduling into a single scope of work. Installed costs average $18 to $55 per square foot, while DIY kits typically run $12 to $18 per square foot before accounting for permits, concrete, and equipment.
Permits are required in most municipalities, and HOA rules on height, setbacks, and materials operate independently from city approvals. Climate also shapes the decision: high wind speeds, heavy snow loads, or extreme UV exposure may push structural demands beyond typical DIY skill levels. Improper installation can void warranties, trigger fines, and complicate insurance claims or resale.
What Is an Alumawood Pergola and Why Is It So Popular?
An Alumawood pergola is a shade structure made from roll-formed aluminum panels finished with an embossed, woodgrain texture that replicates the look of real wood. Alumawood is so popular because it combines that natural aesthetic with aluminum’s resistance to termites, rot, and UV degradation, all while requiring virtually no annual maintenance.
Manufactured under the Alumawood trademark, these pergola systems are available as lattice covers that filter sunlight or solid-panel roofs that provide complete shade. According to ICC Evaluation Service report ESR-1398, the cover components feature an embossed finish that simulates wood and come in multiple colors, with both freestanding and attached configurations engineered to meet building code requirements.

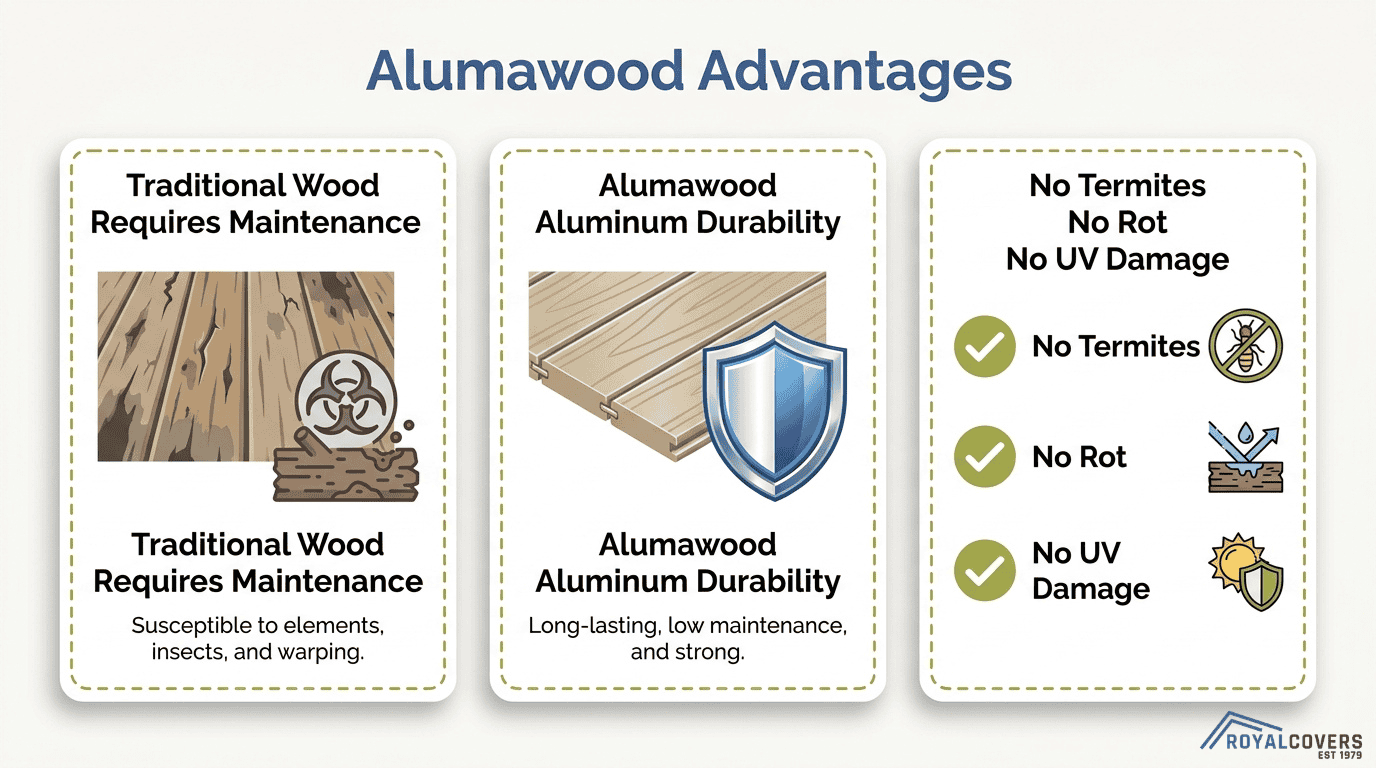

The material advantages make Alumawood particularly compelling when compared to traditional pergola options. Wood species like cedar and redwood demand regular sealing and staining, while vinyl can warp under extreme heat. Alumawood panels span up to 20 feet, cover an entire patio in a single run, and resist the cracking, warping, and insect damage that shorten the lifespan of wood alternatives. That durability, paired with a fraction of the upkeep cost, explains why homeowners increasingly choose it for outdoor living projects.
Popularity also ties directly to property value. The National Association of REALTORS reports that 92% of REALTORS have suggested sellers improve curb appeal before listing, and a well-built shade structure is one of the most visible outdoor upgrades a homeowner can make. Alumawood’s clean woodgrain finish and low-maintenance profile make it an appealing addition at resale, particularly in sun-intensive climates where functional shade is a practical necessity rather than a luxury.
Whether you plan to install an Alumawood pergola yourself or hire a professional crew, understanding what the material is and why it dominates the patio cover market is the essential first step. The sections that follow break down the full DIY process, professional installation scope, costs, permits, and the most common mistakes to avoid.
What Does a DIY Alumawood Pergola Installation Involve?
A DIY Alumawood pergola installation involves gathering specialized tools, preparing the site for level and square footings, following a staged build sequence, and committing one to two full days of labor. The following sub-sections break down each phase.
What Tools and Materials Do You Need for a DIY Alumawood Pergola?
The tools and materials you need for a DIY Alumawood pergola include both standard construction equipment and aluminum-specific cutting and fastening supplies. According to Patio Kits Direct, the recommended tool list includes:
- Ladder, hammer, and measuring tape
- Chop saw or electric jig saw with a fine-toothed metal blade
- Metal tin snips and a grinder
- 5/8″ hole saw or Forstner bit, plus 1/8″ and 5/16″ drill bits
- Hex head drivers (#8, #10, #14) and an assorted socket set
- 4′ or 2′ level, chalk line, string line, and carpenter’s square
- Caulking gun, utility knife, and protective gloves and glasses
- Electric drill, hammer drill, and 3/8″ masonry bit
- 2×6 Douglas Fir wood ledger fill and stud finder
On the materials side, Alumawood panels are made from 100% aluminum with spans up to 20 feet, eliminating vulnerability to termites. Before ordering, verify HOA restrictions on height, setbacks, color, or materials, since HOA rules operate separately from municipal permits.
How Do You Prepare the Site Before Installing an Alumawood Pergola Yourself?
You prepare the site before installing an Alumawood pergola yourself by verifying the slab condition, establishing square reference lines, and confirming that attachment points meet structural requirements. Start by checking that the existing concrete slab is level and thick enough for post anchors. If footings are required, mark locations and excavate before pouring concrete.
Use the 3-4-5 squaring method to establish layout lines, since the house wall and patio slab are rarely perfectly square. Confirm that the ledger board attachment point connects to solid framing, not just plywood sheathing behind stucco. Getting site preparation right prevents compounding alignment errors throughout the entire build.

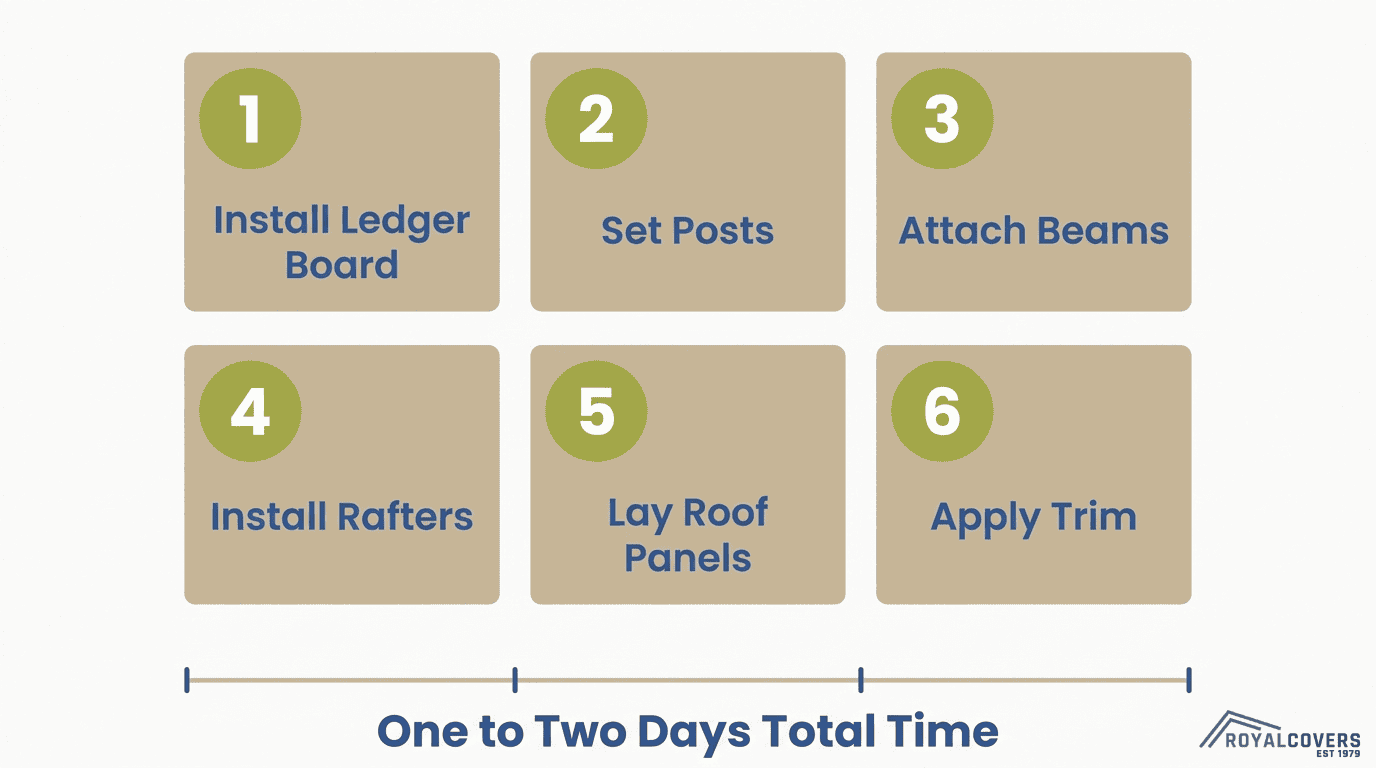

What Are the Step-by-Step Stages of a DIY Alumawood Pergola Build?
The step-by-step stages of a DIY Alumawood pergola build follow a structured sequence from anchoring to final trim. According to Patio Kits Direct’s building instructions, the general progression is:
- Install the ledger board against the house wall (for attached covers) or set freestanding post footings.
- Set and plumb all posts, verifying they are level and square before locking beams.
- Attach main beams to posts using prescribed hardware and fastener patterns.
- Install rafters across beams at the spacing specified in the engineering plans.
- Lay roof panels (solid or lattice) onto the rafter framework.
- Apply trim caps, end closures, and caulk all connection points.
Always follow the manufacturer’s prescribed installation instructions and engineering plans. Skipping diagonal checks or forcing bolts through misaligned holes creates rafter misalignment that compounds across the entire structure.
How Long Does It Take to Install an Alumawood Pergola as a DIY Project?
An Alumawood pergola takes one to two days to install as a DIY project. According to Try-Tech Patios, the average installation generally takes around two days, with the time frame depending on skill level and cover size.
Several factors influence total duration:
- Cover size and style: A small lattice cover installs faster than a large solid-panel roof with insulation.
- Site readiness: Pre-poured footings and a level slab reduce setup time significantly.
- Helper availability: Most stages require at least two people to hold, align, and fasten components safely.
- Tool familiarity: Comfort with a chop saw, hammer drill, and hex head drivers keeps the build moving.
For first-time builders working on a moderately sized patio cover, budgeting a full weekend is the most realistic expectation. Understanding the full scope of the DIY process makes it easier to compare against what professional installation includes.
What Does Professional Alumawood Pergola Installation Include?
Professional Alumawood pergola installation includes a structured sequence of site assessment, structural anchoring, and finishing work. The subsections below cover each phase: design evaluation, footings and anchoring, and final cleanup.
What Happens During a Professional Site Assessment and Design Phase?
A professional site assessment and design phase involves evaluating the installation area, verifying structural conditions, and creating an engineered plan before any material is cut. Contractors measure the patio or mounting surface, check for level and square, and identify attachment points on the home’s framing.
According to the ICC Evaluation Service, freestanding and attached patio covers must be constructed according to the engineering plans accompanying the evaluation report. This means a professional crew confirms soil conditions, verifies ledger board integrity, reviews local wind and live-load requirements, and ensures the design complies with municipal codes. Everything downstream of a bad site decision costs more to fix than it would have cost to get right the first time. Skipping this phase is one of the most common reasons DIY projects run into structural problems later.
How Do Professional Installers Handle Footings and Structural Anchoring?
Professional installers handle footings and structural anchoring by engineering each connection point to meet local load requirements and manufacturer specifications. For attached covers, bolts must connect to solid wood framing behind stucco or siding; plywood sheeting alone is not sufficient. Freestanding Alumawood pergolas typically require steel post inserts set into concrete footings. When an existing slab is present, the slab must be cut and concrete removed at each post location so new footings can be poured to the required depth.
According to Patio Kits Direct, you must weigh DIY cost savings against the heavy technical demands, such as drilling into structural ledger boards and calculating wind loads, that a professional contractor handles to guarantee long-term durability. Proper anchoring is where installation quality either holds or fails over the structure’s lifespan.
What Finishing and Cleanup Steps Do Professional Crews Perform?
Professional crews perform finishing and cleanup steps that protect the structure’s appearance, seal weatherproofing details, and leave the site ready for use. These steps typically include:
- Applying sealant and caulk at all ledger board connections and flashing joints.
- Verifying every post is plumb and every beam is level after final tightening.
- Trimming any exposed panel edges with clean, deburred cuts.
- Removing all construction debris, packaging materials, and dust from the patio area.
- Conducting a final walkthrough with the homeowner to confirm alignment, finish quality, and hardware tightness.
This phase is easy to overlook but separates a lasting installation from one that develops leaks or cosmetic issues within the first season. With structural and aesthetic details locked in, cost becomes the next major factor in choosing between DIY and professional installation.

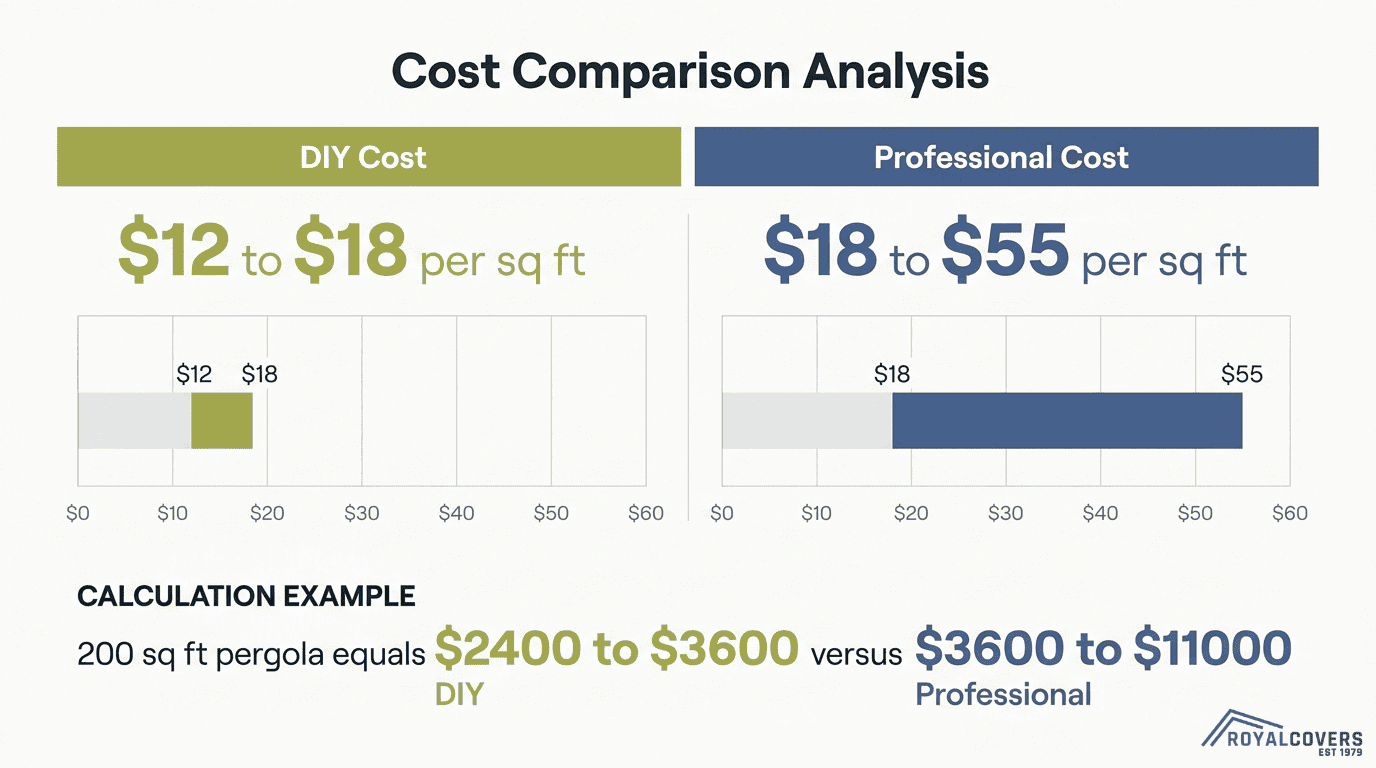

How Much Does DIY Alumawood Pergola Installation Cost Compared to Pro?
DIY Alumawood pergola installation costs significantly less than professional installation, primarily because you eliminate labor charges. The sections below break down material-only pricing, total professional costs, and hidden expenses that can surprise DIY builders.
How Much Do Alumawood Pergola Materials Cost Without Labor?
Alumawood pergola materials cost between $1,000 and $2,000 for a 100-square-foot structure, making them the most affordable pergola material on the market. According to Thumbtack’s national pricing data, comparable materials cost substantially more: vinyl/PVC runs $1,000 to $2,500, pine $2,200 to $3,000, cedar $2,800 to $4,000, and redwood $4,000 to $5,000.
Kit pricing, however, does not include everything you need. Additional costs beyond the kit may include:
- Concrete footings and post anchoring hardware
- Permit fees and engineering drawings
- Electrical work for fans or lights
- Site preparation and equipment rental
- Freight coordination and delivery charges
For homeowners comfortable with construction basics, Alumawood’s low material cost is its strongest selling point against wood alternatives.
How Much Does Professional Alumawood Pergola Installation Cost in Total?
Professional Alumawood pergola installation costs an average of $18 to $55 per installed square foot, according to HomeGuide. That range covers materials, labor, footings, and basic finishing. A 200-square-foot cover, then, typically runs $3,600 to $11,000 fully installed.
In Southern California, DIY kit pricing for Alumawood or Weatherwood pergolas ranges from $12.77 to $18.04 per square foot, as reported by Valley Patios in 2025. The gap between that DIY kit price and the $18 to $55 professional installed price represents the labor, engineering, permitting, and finishing that contractors bundle into their quotes. Smaller or simpler structures land at the lower end; larger attached covers with electrical work or complex footings push toward the higher range.
What Hidden Costs Can Arise During a DIY Alumawood Pergola Project?
Hidden costs during a DIY Alumawood pergola project often catch first-time builders off guard. As noted by Alumcenter, expenses not included in a standard kit can include permit fees, engineering drawings, concrete footing materials, electrical work, equipment rental, and site preparation.
The most commonly overlooked expenses are:
- Permit and inspection fees, which vary by municipality
- A chop saw, hammer drill, or Forstner bit if not already owned
- Concrete and rebar for footings on freestanding installations
- Corrective materials if posts are set out of plumb or square
These add-ons can increase a DIY project’s total cost by 30% or more beyond the kit price alone. Budgeting only for the kit itself is one of the most common planning mistakes, and it erodes the savings that motivated the DIY approach in the first place.
Understanding the full cost picture helps you weigh whether professional installation’s bundled pricing actually delivers better value for your situation.
What Are the Pros and Cons of DIY Alumawood Pergola Installation?
The pros and cons of DIY Alumawood pergola installation center on cost savings versus structural and warranty risks. Below, the biggest advantages and most common risks are covered in detail.
What Are the Biggest Advantages of Installing Alumawood Yourself?
The biggest advantages of installing Alumawood yourself are lower upfront cost, flexible scheduling, and hands-on control over the build. DIY kits for Alumawood pergolas typically cost $12 to $18 per square foot for materials alone, compared to $18 to $55 per square foot for fully installed projects. That gap represents significant savings on labor.
Working at your own pace also eliminates the need to coordinate with a contractor’s schedule. For homeowners with intermediate carpentry skills and the right tools, a weekend build offers genuine satisfaction. Most Alumawood kits ship with manufacturer-prescribed engineering plans, giving capable DIYers a clear blueprint to follow.
Still, cost savings only hold value when the finished structure passes inspection and performs long-term.
What Are the Most Common Risks of a DIY Alumawood Pergola Install?
The most common risks of a DIY Alumawood pergola install include voided warranties, failed inspections, and structural errors that compound over time. According to HomeGuide, improper installation may void your warranty, depending on the manufacturer.
Key risks to consider:
- Permit violations. Building without a permit risks fines, stop-work orders, or forced removal of the finished structure.
- Insurance complications. Unpermitted structures can invalidate homeowner’s insurance claims and create problems at resale.
- Alignment errors. A half-inch out of square at the posts can produce one to two inches of rafter misalignment at the roof edge.
- HOA conflicts. HOA rules on height, setbacks, color, and materials operate independently from city permits.
- Footing failures. Incorrectly poured footings compromise the entire structure’s load-bearing capacity under wind and live loads.
For most homeowners, the risk of a costly do-over outweighs the labor savings, especially when structural integrity and long-term warranty protection are at stake. Understanding these trade-offs makes it easier to evaluate whether professional installation offers better overall value.
What Are the Pros and Cons of Hiring a Pro for Alumawood Pergola Installation?
The pros and cons of hiring a pro for Alumawood pergola installation involve trade-offs between structural reliability and higher upfront cost. The sections below cover key benefits and potential drawbacks.
What Are the Key Benefits of Professional Alumawood Pergola Installation?
The key benefits of professional Alumawood pergola installation include code-compliant engineering, proper structural anchoring, and warranty protection. Professional crews calculate wind loads, pour footings to local specifications, and attach ledger boards to verified structural framing, not just plywood sheeting.
Key advantages include:
- Structural accuracy. Professionals ensure posts are plumb and square, preventing the rafter misalignment that compounds from small layout errors.
- Permit and inspection handling. Licensed contractors manage required inspections for footings, ledger attachment, and final sign-off.
- Warranty preservation. According to HomeGuide, improper installation may void the manufacturer’s warranty.
- Faster completion. Trained crews finish installations in predictable timeframes without the learning curve a first-time builder faces.
For most homeowners, the peace of mind from a properly engineered Alumawood pergola justifies the labor investment.
What Are the Potential Drawbacks of Hiring a Professional Installer?
The potential drawbacks of hiring a professional installer are higher total cost, less scheduling control, and reliance on contractor availability. Alumawood patio cover installed cost averages $18 to $55 per square foot, which represents a significant premium over DIY kit pricing.
Other considerations include:
- Limited customization input. Some installers follow standard build procedures, leaving less room for owner-directed modifications during assembly.
- Scheduling dependency. Project timelines depend on the contractor’s workload, permit processing, and inspection availability.
- Vetting responsibility. Homeowners must verify licensing, insurance, and bonding before signing a contract; an unqualified installer introduces the same risks as a DIY mistake.
Despite the higher cost, professional installation remains the safer path for attached Alumawood pergolas that require ledger connections and engineered footing designs. Understanding these trade-offs helps clarify whether a DIY approach or professional expertise better fits your project scope.
What Skill Level Do You Need to DIY an Alumawood Pergola Successfully?
You need intermediate carpentry skills to DIY an Alumawood pergola successfully. The project demands comfort with power tools, structural layout techniques, and precise measurement across multiple build stages.
A DIY Alumawood pergola installation requires the same core competencies that carpenters use professionally. According to the U.S. Bureau of Labor Statistics, carpenters construct, repair, and install building frameworks and structures made from wood and other materials. An Alumawood kit build follows a similar sequence: site layout, post setting, beam attachment, and rafter installation, all requiring accuracy at each stage.
The tool list alone signals the skill threshold. Alumawood kit manufacturers recommend specialized equipment, including:
- Chop saw or electric jig saw with a fine-toothed metal blade
- 5/8″ Forstner bit and assorted hex head drivers
- Hammer drill with 3/8″ masonry bit
- Tin snips for trimming aluminum panels
- 4-foot level, chalk line, and carpenter’s square
Beyond tool familiarity, you need working knowledge of the 3-4-5 squaring method. Kit installation guides note this technique is essential because “the house and/or the patio slab are rarely square.” A half-inch layout error at the posts can cascade into significant rafter misalignment at the roof edge, so precision during site layout is not optional.
Someone who has successfully completed projects like deck building, fence installation, or shed framing will likely have the transferable skills this project requires. If you have never used a chop saw, read a level accurately, or drilled into concrete or structural framing, the learning curve may be steep enough to compromise safety and warranty coverage. For homeowners without this hands-on experience, professional installation eliminates the structural risk entirely.
Knowing your skill level is one factor; understanding local permit requirements is another critical step before starting any Alumawood build.
Do You Need a Permit to Install an Alumawood Pergola?
Yes, you typically need a permit to install an Alumawood pergola. Permit requirements vary by municipality, with some cities exempting structures under 300 square feet while others require permits for all patio covers regardless of size.
Your local building department sets the specific live-load requirements in lb/sq ft and wind speed requirements in mph that your Alumawood pergola must meet. According to the City of San Diego Development Services, patio covers that do not exceed 300 square feet of projected roof area may be exempt from a building permit for single-family and duplex residential structures, though separate electrical, mechanical, and plumbing permits may still apply.
Beyond the permit itself, most jurisdictions require inspections at key stages: footings before concrete is poured, ledger attachment when the cover connects to an existing structure, and a final inspection when all work is complete. Skipping permits carries real consequences. Without a permit, you risk fines, a stop-work order, or being required to remove a finished structure. Unpermitted structures can also complicate homeowner’s insurance claims and create problems when selling your home.
HOA rules operate separately from municipal permits. Your homeowners association may restrict height, setbacks, color, or materials, and HOA approval is required regardless of what the city permits. For most homeowners, the permit process is one of the strongest reasons to consider professional installation, since experienced contractors handle engineering plans, code compliance, and inspection scheduling as part of their standard workflow.
How Does Climate Affect Alumawood Pergola Installation Decisions?
Climate affects Alumawood pergola installation decisions by determining the structural load ratings, footing depths, and anchoring methods required for safe, code-compliant construction. Wind speed, snow load, UV exposure, and humidity each shape whether a DIY approach is realistic or whether professional installation is the safer choice.
Local building authorities set the specific values for ground snow load, wind speed, seismic design category, frost line depth, and exposure classification that every Alumawood pergola must meet. According to Alumawood Products engineering plans, these critical parameters, including ground snow load, wind speed, exposure, seismic rating, frost line depth, termite risk, decay potential, and winter design temperature, are all set by the local building authority. This means identical Alumawood kits require different engineering configurations depending on where they are installed.
DIY installers must obtain their local building department’s live-load requirements in pounds per square foot and wind speed requirements in miles per hour before purchasing a kit. Snow load calculations matter significantly: saturated snow can weigh approximately 20 pounds per cubic foot, with moisture content ranging from 1% to 33%, producing weights from 1 pound to over 30 pounds per cubic foot. Underestimating snow weight is one of the most consequential miscalculations a DIY builder can make, because an under-engineered roof panel or inadequate footing will fail under seasonal accumulation.
High-wind regions demand heavier-gauge post anchoring and may require engineered bracing that exceeds typical DIY skill levels. UV-intense climates like the desert Southwest accelerate wear on improperly sealed connections, while high-humidity coastal environments increase corrosion risk at fastener points. Alumawood’s 100% aluminum construction resists termites and rot, but the anchoring hardware, concrete footings, and ledger attachments still need climate-appropriate specifications.
For homeowners in mild, low-wind climates with minimal snow, a well-prepared DIY installation is often feasible. In regions with high wind speeds, heavy snow loads, or extreme temperature swings, professional installation ensures that footing depth, post anchoring, and panel load ratings all comply with local code. Understanding your climate zone before choosing DIY or professional installation prevents costly structural failures down the line.
What Mistakes Should You Avoid When Installing an Alumawood Pergola?
The mistakes you should avoid when installing an Alumawood pergola fall into two categories: structural errors that compromise safety and aesthetic errors that diminish the finished appearance. The sections below cover each category.
What Structural Mistakes Can Compromise a DIY Alumawood Pergola?
Structural mistakes that can compromise a DIY Alumawood pergola include out-of-square layouts, uneven footings, and misaligned post-to-beam connections. According to Zen Pergolas, a half-inch out of square at the posts can translate to a one-to-two-inch rafter misalignment at the roof edge.
Common causes of structural failure include:
- Skipping diagonal checks during initial layout
- Using inconsistent reference points for measurements
- Forcing bolts through misaligned holes instead of correcting the layout
- Failing to plumb posts before locking in beams
- Rotating brackets even a few degrees off 90°
A pergola must resist wind, keep posts plumb, and carry the combined weight of beams, rafters, and any added roof panels or privacy walls. Every one of these structural errors compounds downstream, making corrections progressively more expensive.
What Aesthetic Errors Are Common in DIY Alumawood Pergola Projects?
Aesthetic errors common in DIY Alumawood pergola projects include inconsistent rafter spacing, visible fastener misalignment, uneven panel gaps, and mismatched caulk lines. These issues rarely threaten structural integrity, but they immediately signal amateur workmanship to anyone looking at the finished cover.
Most aesthetic problems trace back to the same root cause as structural ones: a layout that was not perfectly square or level from the start. When the frame is even slightly off, every subsequent component amplifies the visual inconsistency. Rushing through rafter placement or skipping a chalk line before cutting panels tends to produce uneven shadow lines and awkward transitions at the roofline.
For homeowners planning to sell, these visible imperfections can undercut the curb appeal gains an Alumawood pergola is meant to deliver. Taking time to dry-fit components before final fastening is one of the simplest ways to catch alignment issues early.
Understanding these common mistakes helps clarify the skill threshold separating a successful DIY build from one that needs professional correction.

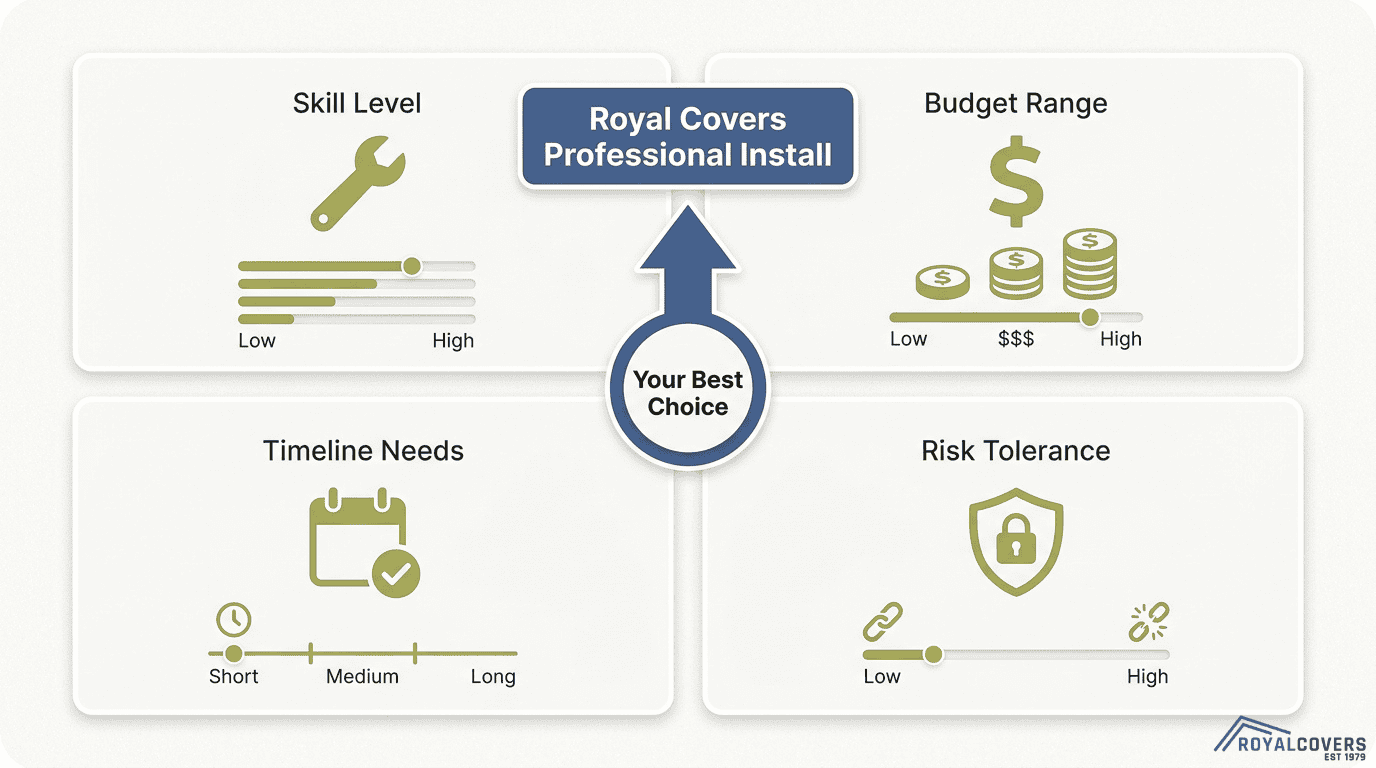

How Do You Decide Between DIY and Professional Alumawood Pergola Installation?
You decide between DIY and professional Alumawood pergola installation by weighing your construction skill level, budget, timeline, and tolerance for structural risk. The sections below cover how Royal Covers can help and the key takeaways from the DIY vs. pro comparison.
Can Royal Covers Help With Custom Alumawood Pergola Installation?
Yes, Royal Covers can help with custom Alumawood pergola installation. Founded in 1979, Royal Covers specializes in designing and installing Alumawood patio covers and pergolas engineered specifically for Arizona’s desert climate. Royal Covers handles every phase of the project, from free on-site design consultation through permitting, HOA approvals, and professional installation by full-time, continuously trained crews.
Alumawood provides the beauty of a richly textured, woodgrain finish with a fraction of the maintenance. Royal Covers pairs that low-maintenance material with custom layouts tailored to each homeowner’s space, ensuring proper structural anchoring, code-compliant footings, and a finished result backed by a 2-year workmanship warranty plus limited lifetime manufacturer coverage.
For homeowners who want the cost savings of a DIY approach, kit pricing in Southern California typically ranges from $12.77 to $18.04 per square foot. However, that figure excludes labor, concrete footings, permits, and engineering drawings. Royal Covers eliminates those hidden variables with transparent, no-haggle pricing that accounts for the full scope of work.
What Are the Key Takeaways About DIY vs Pro Alumawood Pergola Installation?
The key takeaways about DIY vs. pro Alumawood pergola installation center on matching your capabilities to the project’s structural demands:
- DIY installation suits experienced homeowners comfortable with chop saws, footing layout, and the 3-4-5 squaring method, and it can reduce upfront costs significantly.
- Professional installation eliminates risks tied to ledger board attachment, wind load calculations, and permit inspections, all of which directly affect long-term durability and warranty coverage.
- Hidden DIY costs, including permit fees, engineering drawings, concrete footings, and equipment rental, can narrow the price gap between self-install and hiring a qualified contractor.
- Improper installation may void your manufacturer warranty, complicate insurance claims, and create problems at resale.
For most homeowners, the decision comes down to whether the labor savings justify the technical responsibility. If structural confidence or permitting feels uncertain, professional installation is the safer long-term investment. Royal Covers brings over 45 years of Phoenix-area expertise to every Alumawood pergola project, handling design, engineering, permits, and installation so the finished structure performs as intended for decades.
