Alumawood and louvered pergolas are two aluminum-based outdoor shade structures that differ in roof design, functionality, cost, and maintenance. Alumawood uses wood grain-embossed aluminum panels in fixed lattice or solid configurations, while louvered pergolas feature adjustable rotating slats that shift between open and closed positions on demand.
This guide covers material composition and design aesthetics, sun and shade performance across roof types, weather resistance and rain management, cost differences and long-term value, and maintenance and durability expectations.
Alumawood replicates natural wood’s appearance through embossed alloy panels available in multiple factory-applied colors, protected by a Teflon-coated paint system that eliminates staining and resealing. Louvered pergolas take a different design approach with clean, linear aluminum frames suited to contemporary architecture and motorized controls that adjust blade angles via remote or app.
Both structures handle extreme heat effectively, though their methods diverge. Alumawood’s fixed panels provide permanent UV blockage without mechanical components, while louvered systems actively manage airflow by venting trapped heat through adjustable blade angles. For rain protection, solid Alumawood panels create a sealed barrier, and louvered roofs route water through integrated gutter channels concealed within the frame.
Pricing separates these two options dramatically. Alumawood kits start under $20 per square foot for DIY installation, while motorized louvered systems range from $65 to $180 per square foot professionally installed. That cost gap extends to maintenance; Alumawood requires only soap-and-water cleaning, whereas louvered systems need lubrication every 3 to 6 months and regular debris clearing from drainage channels.
Longevity favors Alumawood’s simplicity, with lifetime structural warranties versus the 2 to 5 year mechanical warranties typical of motorized louvered components.
What Is an Alumawood Pergola?
An Alumawood pergola is a patio shade structure made from aluminum alloy panels embossed with a realistic wood grain texture. It combines the classic look of natural wood with aluminum’s resistance to rot, insects, and weather damage.
According to Alumashade’s technical specifications, Alumawood uses aluminum alloys 3004-H36, 3015-H25, and 6063-T6 for smooth brackets, replicating natural wood’s aesthetic while remaining impervious to termites, rot, and warping. This engineered material delivers the warmth of a traditional wooden pergola without the ongoing upkeep that real wood demands in harsh climates.
Alumawood pergolas are available in two primary roof configurations:
- Lattice (open-roof): Spaced slats filter sunlight and allow airflow, creating dappled shade patterns underneath.
- Solid panel (closed-roof): Continuous panels block direct UV exposure entirely, offering full overhead coverage.
Because the base material is aluminum rather than organic wood, these structures will not crack, split, or warp over time. Aluminum is approximately three times more durable than wood or composite materials for outdoor applications and is non-combustible, which makes it a safer choice for residential settings. Routine care involves little more than cleaning with mild soap and water to maintain appearance and performance.
For homeowners weighing this option against more advanced alternatives, the sections ahead compare Alumawood directly with louvered pergolas across design, shade control, weather resistance, cost, and long-term value.
What Is a Louvered Pergola?
A louvered pergola is an outdoor shade structure with adjustable roof slats, called louvers, that rotate to control sunlight, airflow, and rain exposure. Built from high-grade aluminum, these systems offer on-demand weather protection that static roof designs cannot match. The sections below cover how louvers work, what materials are used, and which features define this pergola type.
Louvered pergolas use either motorized or manual mechanisms to tilt individual louver blades between fully open and fully closed positions. When open, the louvers allow sunlight and breeze to pass through freely. When closed, they form a near-solid roof that blocks rain and intense UV exposure. This adjustability makes louvered pergolas uniquely suited to climates with rapidly changing conditions, where homeowners need to shift between full sun, partial shade, and complete cover throughout a single day.
Most louvered pergola frames are constructed from extruded 6063-T6 aluminum alloy. According to Wasleen, 6063-T6 aluminum is considered the architectural standard for pergolas due to its superior mechanical properties and ability to achieve high-quality surface finishes suitable for modern designs. The louver blades themselves vary by manufacturer; premium systems use double-walled louver construction for better insulation and quieter operation, while budget models rely on single-wall blades.
Key features that distinguish louvered pergolas from other shade structures include:
- Adjustable louver blades that rotate up to 160 degrees for precise light control.
- Integrated gutter channels within the frame that collect and divert rainwater when louvers are closed.
- Motorized or manual operation, with motorized versions often including remote controls, rain sensors, and smart home integration.
- Freestanding or wall-mounted installation options to suit different patio layouts.
The mechanical complexity of louvered systems is both their greatest advantage and a consideration worth weighing carefully. Homeowners who prioritize real-time control over their outdoor environment will find few alternatives that match this level of versatility. However, that flexibility comes with moving parts that require periodic attention, a factor that matters when comparing louvered designs against fixed-roof options like Alumawood.
How Do Alumawood and Louvered Pergolas Compare in Design?
Alumawood and louvered pergolas compare in design through distinct visual profiles, customization options, and architectural compatibility. The following sections cover wood-grain realism, louvered flexibility, and style pairing for modern versus traditional homes.
How Does an Alumawood Pergola Look Compared to Real Wood?
An Alumawood pergola looks nearly identical to real wood thanks to wood grain-embossed aluminum alloy surfaces made from 3004-H36, 3015-H25, and 6063-T6 alloys. These embossed profiles replicate the texture and visual warmth of natural timber while remaining impervious to termites, rot, and warping.
According to Alumawood Outdoor Living, the product line offers seven factory-applied colors, including Adobe, Mojave Tan, and Spanish Brown, all protected by the Aluma-Shield paint system with Teflon surface protector to repel dirt and resist corrosion. This coating eliminates the need for staining or resealing that real wood demands annually.
The visual payoff is significant: homeowners get the classic wood aesthetic at a fraction of the long-term upkeep cost. DIY kits using Alumawood materials range from $12.77 to $18.04 per square foot as of June 2025, making the wood-grain look accessible without the premium of natural lumber.
How Much Design Flexibility Does a Louvered Pergola Offer?
A louvered pergola offers substantial design flexibility through adjustable blade angles that shift between full sun, partial shade, and complete overhead coverage on demand. Motorized models add remote or app-based control, letting homeowners change their patio’s character in seconds.
This adaptability comes with a trade-off worth considering. Motorized pergola systems often include a limited 2 to 5 year warranty for electrical and mechanical components, significantly shorter than the lifetime structural warranties typically offered for non-motorized aluminum frames. For homeowners who prioritize long-term reliability over on-the-fly adjustments, that warranty gap deserves careful evaluation before committing to motorized controls.
Which Style Complements Modern vs Traditional Home Architecture?
Louvered pergolas complement modern home architecture with clean, linear profiles, while Alumawood pergolas suit traditional homes through their natural wood-grain texture. Choosing the right style depends on your home’s existing design language.
6063-T6 aluminum alloy is considered the architectural standard for pergolas because its superior mechanical properties enable sleek, minimal frames with high-quality surface finishes ideal for contemporary facades. Alumawood’s embossed grain, by contrast, pairs naturally with stucco, tile, and craftsman-style exteriors.
According to a National Association of REALTORS survey, ninety-two percent of real estate professionals recommend that sellers improve curb appeal, including outdoor structures, before listing a property. Selecting a pergola style that harmonizes with existing architecture strengthens that curb appeal rather than creating visual conflict.
Understanding how each pergola type handles design sets the stage for comparing their sun and shade performance.
How Do Alumawood and Louvered Pergolas Handle Sun and Shade?
Alumawood and louvered pergolas handle sun and shade differently based on their roof structure. Alumawood offers two fixed options: lattice for filtered light and solid panels for full shade. Louvered pergolas provide adjustable shade control through rotating slats.
How Does an Alumawood Lattice Pergola Filter Sunlight?
An Alumawood lattice pergola filters sunlight by passing it through evenly spaced open slats that create a pattern of light and shadow beneath the structure. The lattice design blocks a portion of direct UV rays while still allowing natural light and airflow to reach the patio below.
This partial shade works well for areas where homeowners want brightness without full sun exposure, such as garden seating or walkways. The fixed spacing of the lattice means the shade pattern shifts naturally as the sun moves, though the overall coverage level cannot be adjusted after installation. For homeowners who want consistent dappled shade without mechanical components, lattice remains one of the most reliable and low-maintenance configurations available.
How Does an Alumawood Solid Roof Pergola Block Sunlight?
An Alumawood solid roof pergola blocks sunlight completely by covering the entire overhead area with continuous aluminum panels. No direct UV rays pass through, making it ideal for outdoor kitchens, dining areas, or spaces requiring full protection from sun exposure.
Because the roof is fixed, shade coverage remains constant regardless of the sun’s position. This eliminates any mechanical components that could fail over time. According to Heartland Pergolas, mechanical failure in motorized pergola systems is frequently caused by outdoor exposure where dust, twigs, and moisture clog pivot points or damage electrical circuits, potentially leaving the roof stuck in one position. Solid Alumawood panels avoid this risk entirely, delivering permanent, maintenance-free shade with no moving parts to service or replace.

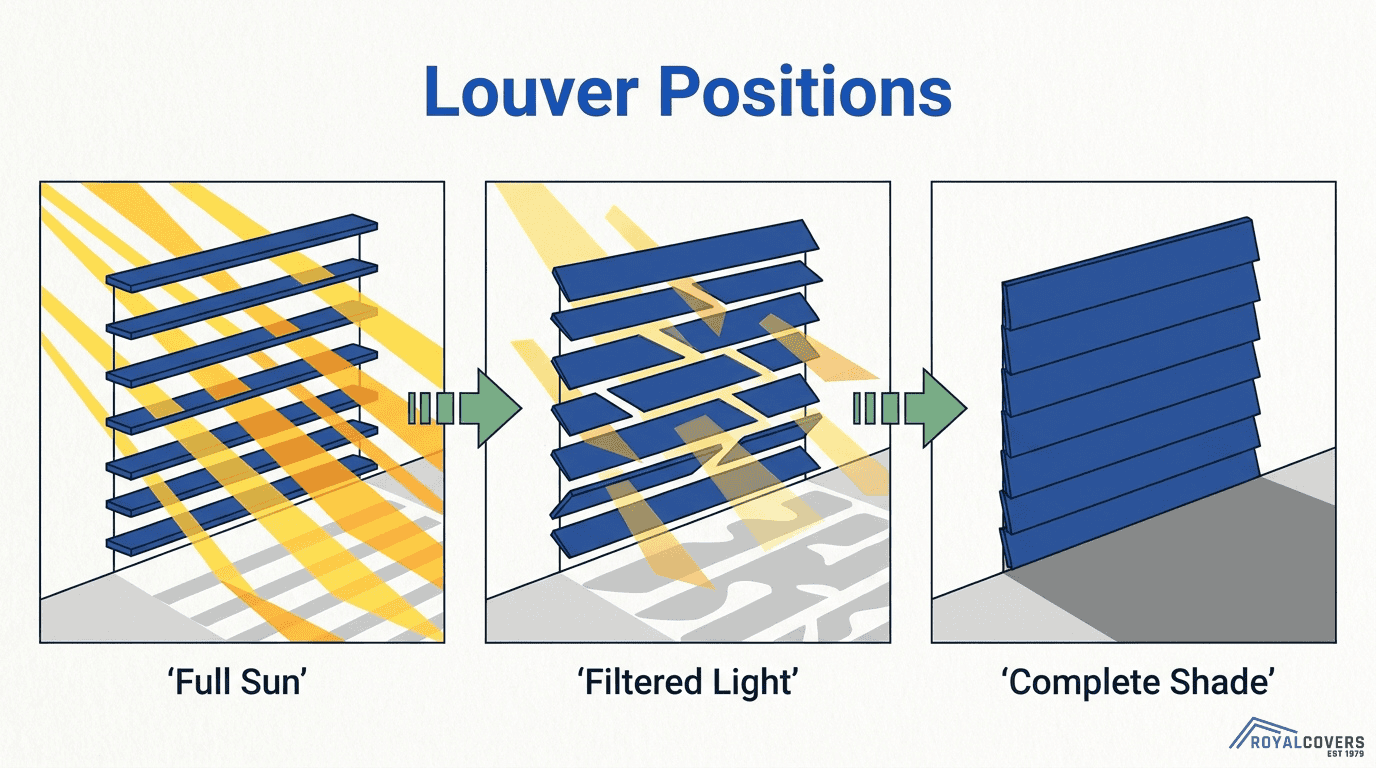

How Do Adjustable Louvers Control Shade Throughout the Day?
Adjustable louvers control shade throughout the day by rotating on pivot points to change the angle of each slat, allowing homeowners to fine-tune how much sunlight passes through. When fully open, the louvers permit maximum light and airflow. When closed, they create a solid, sealed roof that blocks all direct sunlight.
This on-demand flexibility makes louvered pergolas uniquely suited for spaces that serve multiple purposes at different times of day. Morning coffee might call for full sun, while afternoon entertaining benefits from complete shade. A single remote or wall switch adjusts the entire roof in seconds. For homeowners who prioritize real-time shade control over simplicity, louvered systems deliver a level of adaptability that fixed-roof structures simply cannot match.
With sun and shade preferences clarified, the next consideration is how each pergola performs under extreme heat.
How Do Alumawood and Louvered Pergolas Perform in Extreme Heat?
Alumawood and louvered pergolas both use aluminum construction that withstands extreme heat, but they manage thermal comfort differently. The following sections cover Alumawood’s durability in desert temperatures and how louvered roof systems actively manage airflow.
How Does Alumawood Hold Up in Desert Temperatures Above 110°F?
Alumawood holds up exceptionally well in desert temperatures above 110°F. The material is manufactured from aluminum alloys, including 6063-T6, which resists warping, cracking, and deterioration under prolonged UV exposure. Unlike wood, which splits and degrades in sustained triple-digit heat, Alumawood maintains its structural integrity season after season. Its factory-applied finish also resists fading caused by intense solar radiation. Because the panels are non-combustible, they offer an added safety advantage in fire-prone desert regions. For homeowners in extreme climates, this combination of thermal stability and low degradation makes Alumawood a reliable fixed-shade solution, even when temperatures consistently exceed 110°F.
How Does a Louvered Roof System Manage Airflow in Extreme Heat?
A louvered roof system manages airflow in extreme heat by allowing hot air to escape through adjustable louver angles while directing cooler breezes underneath the structure. Motorized louvers rotate to create ventilation gaps that prevent heat from becoming trapped, a critical advantage over fixed-roof designs.
Premium systems take this further with dual-wall louver construction. According to Outdoor Elements USA, dual-wall louver systems are engineered to absorb heat during high-temperature days, maintaining a cooler environment underneath compared to single-layer alternatives. This insulated design also reduces radiant heat transfer to the space below.
Structural resilience reinforces this thermal performance; the Equinox Louvered Roof holds Florida Miami-Dade certification, confirming it withstands harsh climate extremes. For homeowners facing relentless desert heat, active airflow control offers a comfort advantage that static pergola roofs simply cannot match.
How Do Alumawood and Louvered Pergolas Handle Rain and Weather?
Alumawood and louvered pergolas handle rain and weather differently based on their roof designs. Alumawood offers fixed protection that depends on panel style, while louvered systems actively manage water through integrated drainage.
Does an Alumawood Pergola Provide Waterproof Protection?
An Alumawood pergola provides waterproof protection only when configured with solid roof panels. Lattice-style Alumawood covers allow rain to pass through the open slats, offering no meaningful water resistance. Solid panel configurations, however, create a sealed overhead barrier that blocks rain entirely when installed with proper slope and flashing. Because Alumawood is made from aluminum alloy rather than wood, the panels themselves are impervious to water damage, rot, and warping. This eliminates the swelling and deterioration that plague traditional wooden pergolas during prolonged wet conditions. The fixed nature of the roof means there are no moving parts that could fail or leak over time, which makes solid Alumawood a reliably low-maintenance rain shelter.
How Does a Louvered Pergola Drain and Divert Rainwater?
A louvered pergola drains and diverts rainwater through integrated gutter channels built into the structural frame. When louvers rotate to the closed position, overlapping blade edges form a sealed surface that directs water into concealed channels running along the beams. These channels funnel rainwater down through hollow support posts, routing it away from the covered area. According to Schildr, insufficient sealing where louvers meet frame profiles is a primary cause of louvered pergola failure during winter months, leading to water intrusion and mechanical issues. Proper installation and periodic debris clearing from gutter channels are essential to maintaining this active drainage system. For homeowners who need reliable rain protection combined with adjustable ventilation, louvered pergolas offer a level of weather adaptability that fixed-roof structures cannot match.
With weather performance clarified, comparing costs helps determine which pergola delivers the best value.

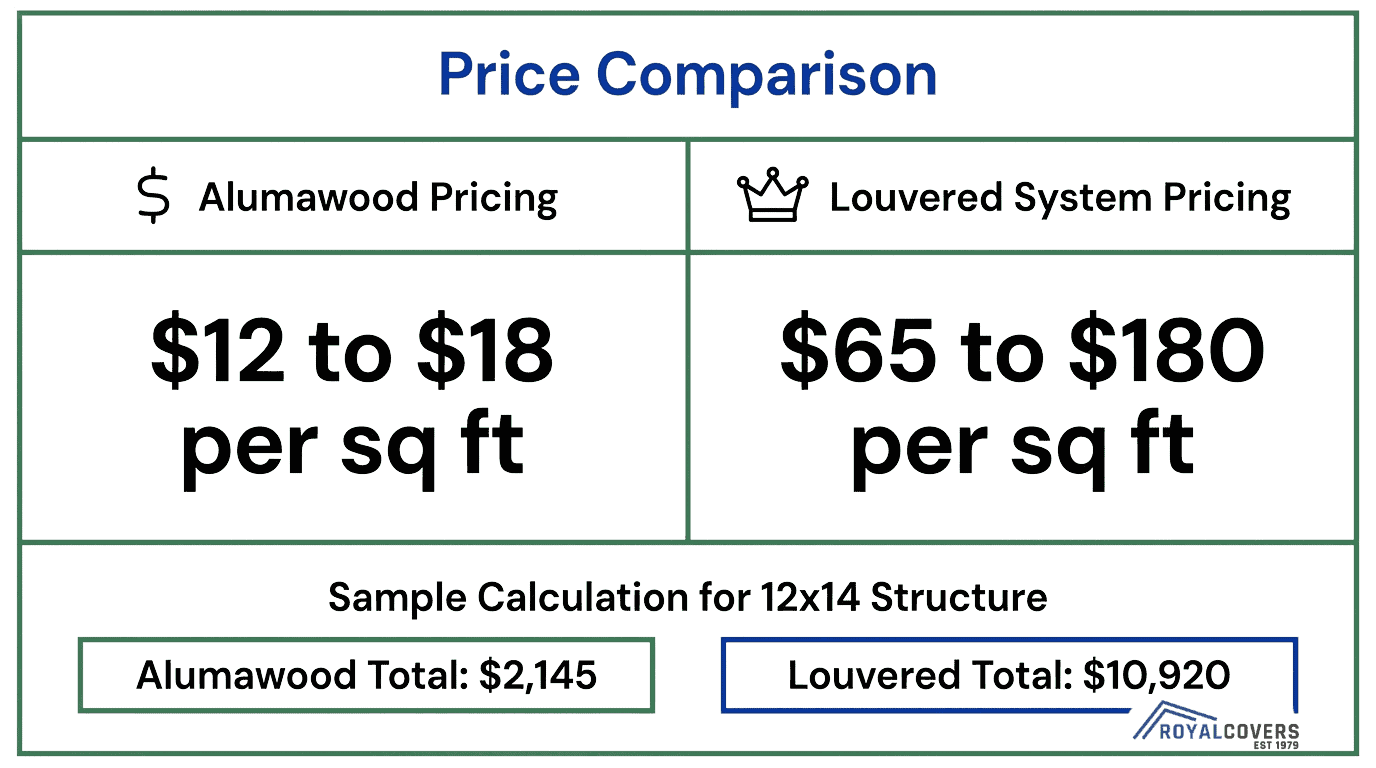

How Much Does an Alumawood Pergola Cost vs a Louvered Pergola?
An Alumawood pergola costs significantly less than a louvered pergola, with price differences often reaching 4x or more per square foot. The sections below break down typical price ranges for each type and the factors that affect final cost.
What Is the Typical Price Range for an Alumawood Pergola?
The typical price range for an Alumawood pergola is approximately $12.77 to $18.04 per square foot for DIY kit installation, according to Valley Patios’ June 2025 pricing data. For a standard 12×14-foot structure (168 sq ft), that translates to roughly $2,145 to $3,031 in materials alone.
Professional installation adds labor costs, but Alumawood projects still remain among the most affordable aluminum patio cover options. The lower per-square-foot cost reflects the product’s straightforward panel-based design, which requires no motorized components or complex mechanical systems. For homeowners prioritizing shade coverage without a steep upfront investment, this price point delivers strong value relative to the structure’s durability and lifespan.
What Is the Typical Price Range for a Louvered Pergola?
The typical price range for a louvered pergola depends on whether the system is manual or motorized. Standard manual aluminum louvered pergolas in the 12×14-foot size typically cost between $12,000 and $16,000 in 2025, according to Aoodor’s market analysis.
Motorized louvered systems command a premium. Professionally installed motorized pergolas range from $65 to $180 per square foot, meaning a 168-square-foot structure could cost between $10,920 and $30,240. Premium brands push toward the higher end of that scale. The motorized components, integrated gutter channels, and precision-engineered louver mechanisms all contribute to the elevated cost. For homeowners who need adjustable sun and rain control, this investment buys functionality that fixed-roof systems cannot match.
What Affects the Final Cost of Each Pergola Type?
The final cost of each pergola type depends on structure size, material grade, installation complexity, and feature upgrades. Key cost factors include:
- Structure dimensions: Larger footprints increase material and labor proportionally.
- Motorization and electronics: Adding motorized louver controls, rain sensors, or smart-home integration raises louvered pergola costs substantially.
- Mounting conditions: Installations on second-story decks, uneven terrain, or older structures requiring structural reinforcement add labor expenses.
- Permits and HOA requirements: Local building permits and homeowner association design reviews add time and fees to both pergola types.
- Color and finish options: Custom powder-coating or specialty finishes beyond standard color selections carry upcharges.
- Electrical work: Louvered pergolas with motorized systems often require dedicated electrical runs, increasing total project cost.
Insufficient sealing where louvers meet frame profiles is also a primary cause of louvered pergola failure during winter months, which can create unexpected repair costs over time. Alumawood’s simpler construction means fewer components that can fail, keeping long-term ownership costs lower.
Understanding these pricing dynamics helps clarify the maintenance demands each system carries over time.

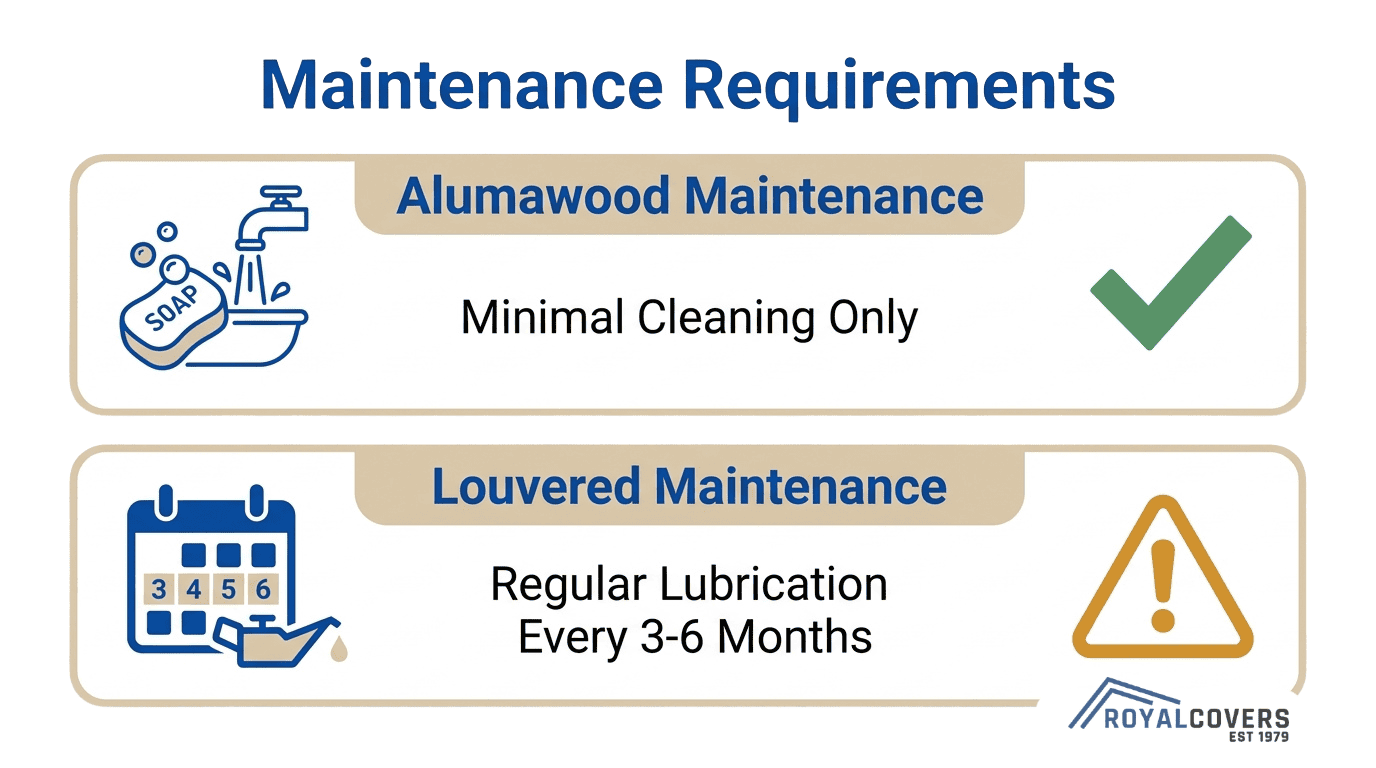

How Do Maintenance Requirements Compare Between the Two?
Maintenance requirements differ significantly between these two pergola types. Alumawood pergolas need minimal upkeep, while louvered pergolas require regular attention to mechanical components and drainage systems.
What Maintenance Does an Alumawood Pergola Need?
An Alumawood pergola needs very little maintenance. The aluminum construction resists rust, fading, and pest damage, so periodic cleaning with mild soap and water is typically sufficient to preserve both appearance and performance. There is no need for staining, sealing, or repainting. The factory-applied Aluma-Shield coating with Teflon surface protector repels dirt and resists corrosion over time. For homeowners who want a structure they can largely forget about after installation, this simplicity is a major advantage.
What Maintenance Does a Louvered Pergola Need?
A louvered pergola needs consistent, scheduled maintenance to keep its mechanical and drainage systems functioning properly. According to Seroban, routine maintenance includes applying a silicone-based spray lubricant to pivot points every 3 to 6 months and clearing debris from integrated gutter channels to prevent water leakage. Motors, sensors, and electrical connections also require periodic inspection, especially after dust storms or heavy rain. Neglecting these tasks can lead to clogged pivots, stuck louvers, or water intrusion at frame seals. The upkeep is manageable, but it demands more time and attention than a fixed-roof alternative.
Understanding each system’s maintenance needs helps clarify which pergola delivers better long-term durability.
How Long Does Each Pergola Type Last?
Each pergola type lasts differently based on its construction and mechanical complexity. Alumawood pergolas and louvered pergolas both use aluminum frames, but their longevity profiles diverge significantly.
Alumawood pergolas typically last a lifetime with minimal intervention. The aluminum alloy frame resists rust, fading, termites, rot, and warping, eliminating the structural failures common with wood. Manufacturers back this durability with limited lifetime structural warranties. Simple cleaning with mild soap and water is the only upkeep required to preserve both performance and appearance over decades.
Louvered pergolas have aluminum frames that match this structural longevity, yet their motorized components introduce a shorter lifespan ceiling. According to Heartland Pergolas, motorized systems often include a limited 2 to 5 year warranty for electrical and mechanical components, which is significantly shorter than the lifetime structural warranties typically offered for non-motorized aluminum frames. Dust, twigs, and moisture can clog pivot points or damage electrical circuits over time, potentially leaving the roof stuck in one position. Insufficient sealing where louvers meet frame profiles is also a primary cause of failure during winter months, leading to water intrusion.
For homeowners weighing long-term ownership costs, Alumawood’s simplicity offers a clear advantage in maintenance-free longevity. Louvered systems deliver superior functionality, but that versatility depends on consistent upkeep and eventual component replacement. Understanding these durability trade-offs helps clarify which pergola best fits your property goals.
Which Pergola Type Adds More Value to a Home?
Both Alumawood and louvered pergolas add measurable value to a home. Patio projects consistently rank among the highest-ROI outdoor improvements, and the pergola type that adds more value depends on upfront cost, perceived quality, and buyer appeal.
According to a 2023 National Association of REALTORS report, homeowners can expect a cost recovery of approximately 95% on a new patio project, with an estimated cost of $10,500 returning $10,000 in home resale value. That near-complete recovery applies broadly to covered outdoor structures, including both Alumawood and louvered pergolas.
Alumawood pergolas deliver strong ROI because their lower upfront cost means less capital at risk. A homeowner spending $3,000 to $5,000 on an Alumawood installation recovers nearly all of that at resale while gaining years of functional outdoor living. The gap between investment and return stays narrow.
Louvered pergolas carry a higher price tag, which changes the ROI calculus. While motorized louver systems enhance perceived home quality and attract buyers seeking premium outdoor features, the larger initial investment means the dollar amount at risk is greater. For homes positioned in the upper market segment, that premium finish can differentiate a listing and justify a higher asking price.
From a practical standpoint, the best value comes from matching the pergola to the home’s price tier. An Alumawood pergola on a mid-range home preserves budget while maximizing percentage return. A louvered roof on a high-end property signals sophistication that buyers in that bracket expect. Choosing the wrong tier in either direction can leave money on the table.
Who Should Choose an Alumawood Pergola Over a Louvered Pergola?
Homeowners who prioritize low cost, minimal upkeep, and a traditional wood-grain aesthetic should choose an Alumawood pergola over a louvered pergola. The sections below break down when budget favors Alumawood, when a louvered system justifies its premium, and which pergola suits outdoor kitchens and living rooms.
When Is an Alumawood Pergola the Better Choice for Budget?
An Alumawood pergola is the better choice for budget when the project needs to maximize covered square footage at the lowest possible cost per square foot. Alumawood kits start well under $20 per square foot for DIY installation, while motorized louvered systems can exceed $65 per square foot before professional labor is even factored in. That price gap means a homeowner covering a standard 12×16 patio could spend a fraction of what a comparable louvered roof would cost. Aluminum pergolas are also highly resistant to rust, fading, and pests, requiring only mild soap and water for maintenance. According to Azenco Outdoor, many buyers underestimate long-term ownership costs when choosing motorized systems, where replacement parts and electrical repairs add up. For homeowners who want durable shade without ongoing mechanical expenses, Alumawood delivers the strongest value.
When Is a Louvered Pergola Worth the Higher Investment?
A louvered pergola is worth the higher investment when the homeowner needs precise, real-time control over sunlight, airflow, and rain protection from a single structure. Fixed-roof Alumawood covers excel at blocking sun, but they cannot open to let in natural light on mild days or close fully to shed a sudden rainstorm. Louvered systems handle both scenarios with a single adjustment. This versatility makes them particularly valuable for homeowners who entertain frequently and want to adapt the space to changing weather without relocating guests. If the patio serves as a primary living area used year-round rather than a seasonal shade spot, the ability to modulate conditions throughout the day often justifies the premium. The investment also makes sense for properties where a high-end outdoor feature strengthens resale positioning in a competitive market.
Which Pergola Works Best for an Outdoor Kitchen or Living Room?
A louvered pergola works best for an outdoor kitchen or living room because it provides watertight protection for appliances, electronics, and furniture while still allowing ventilation when louvers are open. Outdoor kitchens with built-in grills, refrigerators, and stone countertops represent significant investments that need reliable overhead coverage during monsoons. According to Grand View Research, the U.S. outdoor living structures market was estimated at USD 892.9 million in 2024 and is projected to grow at a CAGR of 5.3% through 2030, reflecting how seriously homeowners now treat these spaces. Alumawood solid-roof covers also protect outdoor kitchens effectively, though they lack the ability to open for ventilation during cooking, which can trap smoke and heat beneath the structure. For fully equipped outdoor living rooms with ceiling fans, lighting, and seating, the louvered system’s rain diversion and airflow control make it the more functional choice.
Understanding which pergola fits your goals helps you invest confidently in the right outdoor structure.
How Can Royal Covers Help You Choose the Right Pergola?
Royal Covers can help you choose the right pergola by offering both Alumawood and Equinox Louvered Roof systems, backed by over 45 years of installation experience in Arizona. The sections below cover installation capabilities and key decision-making takeaways.
Can Royal Covers Install Both Alumawood and Equinox Louvered Roofs?
Yes, Royal Covers can install both Alumawood and Equinox Louvered Roofs. As a licensed, bonded, and insured contractor serving Phoenix since 1979, Royal Covers specializes in both product lines. Alumawood patio covers and pergolas provide durable, low-maintenance shade in solid or lattice configurations. Equinox Louvered Roof systems feature motorized, double-walled louvers constructed from high-grade aluminum, offering adjustable sun, shade, and rain control.
Royal Covers handles every step, from free design consultation and custom planning to permit and HOA approvals. Full-time, continuously trained installation teams manage each project rather than subcontractors, ensuring consistent craftsmanship. A 2-year workmanship warranty covers all installations, complemented by limited lifetime manufacturer warranties. For homeowners weighing fixed shade against adjustable coverage, having both options under one installer simplifies comparison and eliminates the need to coordinate multiple contractors.
What Are the Key Takeaways About Alumawood vs Louvered Pergolas?
The key takeaways about Alumawood vs louvered pergolas center on budget, functionality, and lifestyle needs:
- Alumawood pergolas cost significantly less per square foot and require minimal maintenance, making them ideal for homeowners who want reliable, permanent shade without motorized components.
- Louvered pergolas provide adjustable sun and rain control through rotating louvers, suiting those who prioritize versatility and are willing to invest more upfront.
- Both systems use aluminum construction, which resists rust, fading, and pests far better than wood alternatives.
- Alumawood works well for straightforward shade coverage over patios and entryways, while louvered roofs excel for outdoor kitchens and living areas where weather conditions change throughout the day.
- Maintenance differs: Alumawood needs only occasional soap-and-water cleaning, whereas louvered systems require periodic lubrication and debris clearance from gutter channels.
Choosing between the two ultimately depends on whether fixed protection or dynamic control matters more for your outdoor space. Royal Covers offers free consultations to evaluate your property and recommend the best fit for Arizona’s desert climate.
